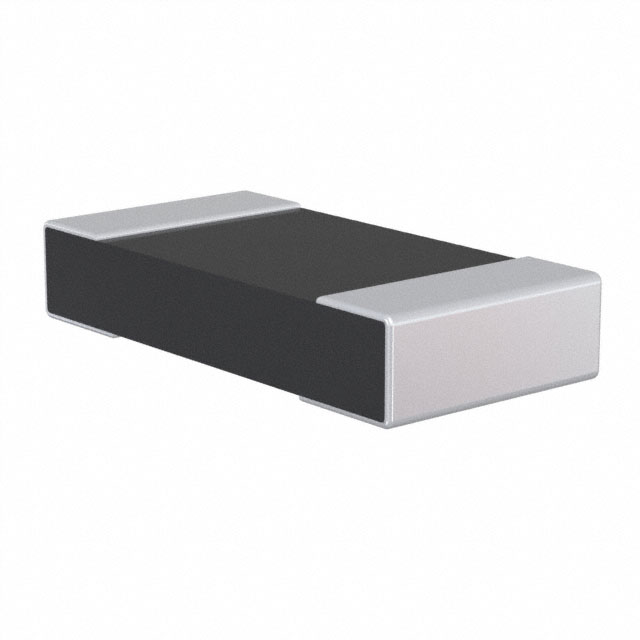

FC0603E1000BBT1
ActiveVishay Dale Thin Film
RES SMD 100 OHM 0.1% 1/8W 0603
FC0603E1000BBT1
ActiveVishay Dale Thin Film
RES SMD 100 OHM 0.1% 1/8W 0603
Description
General part information
FC0603E1000BBT1
100 Ohms ±0.1% 0.125W, 1/8W Chip Resistor 0603 (1608 Metric) RF, High Frequency Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | FC0603E1000BBT1 |
|---|---|
| Composition | Thin Film |
| Features | RF, High Frequency |
| Height - Seated (Max) | 0.033 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Power (Watts) | 0.125 W |
| Power (Watts) Options | 1/8W |
| Resistance | 100 Ohms |
| Size / Dimension Length | 0.064 in |
| Size / Dimension Width | 0.032 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
