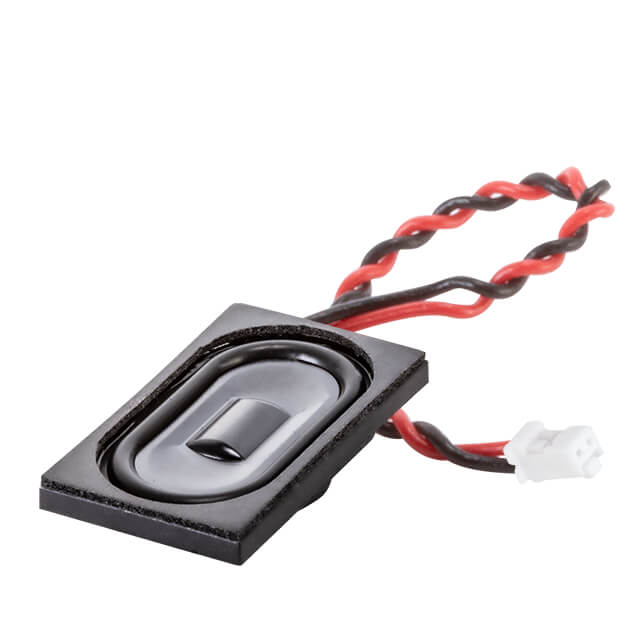

Specification	CMS-35207-28L260

Distortion Rating (Max)	10 %
Distortion Rating Power	2 W
Efficiency - dBA	97.5 dBA
Efficiency - Testing Length	100 mm
Efficiency - Testing Power	2 W
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	670 Hz
Frequency Range (Max)	10 kHz
Frequency Range (Min)	536 Hz
Height - Seated (Max)	0.299 in
Impedance	8 Ohm
Material - Cone	Polyethylenimine (PEI), Polyurethane (PU)
Material - Magnet	Nd-Fe-B
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-30 °C
Port Location	Top
Power - Max	2.5 VA
Power - Rated	2 W
Shape	Oval, Rectangular Frame
Size / Dimension Length	1.378 in
Size / Dimension Width	0.787 in
Technology	Magnetic
Termination	Wire Leads
Type	General Purpose
