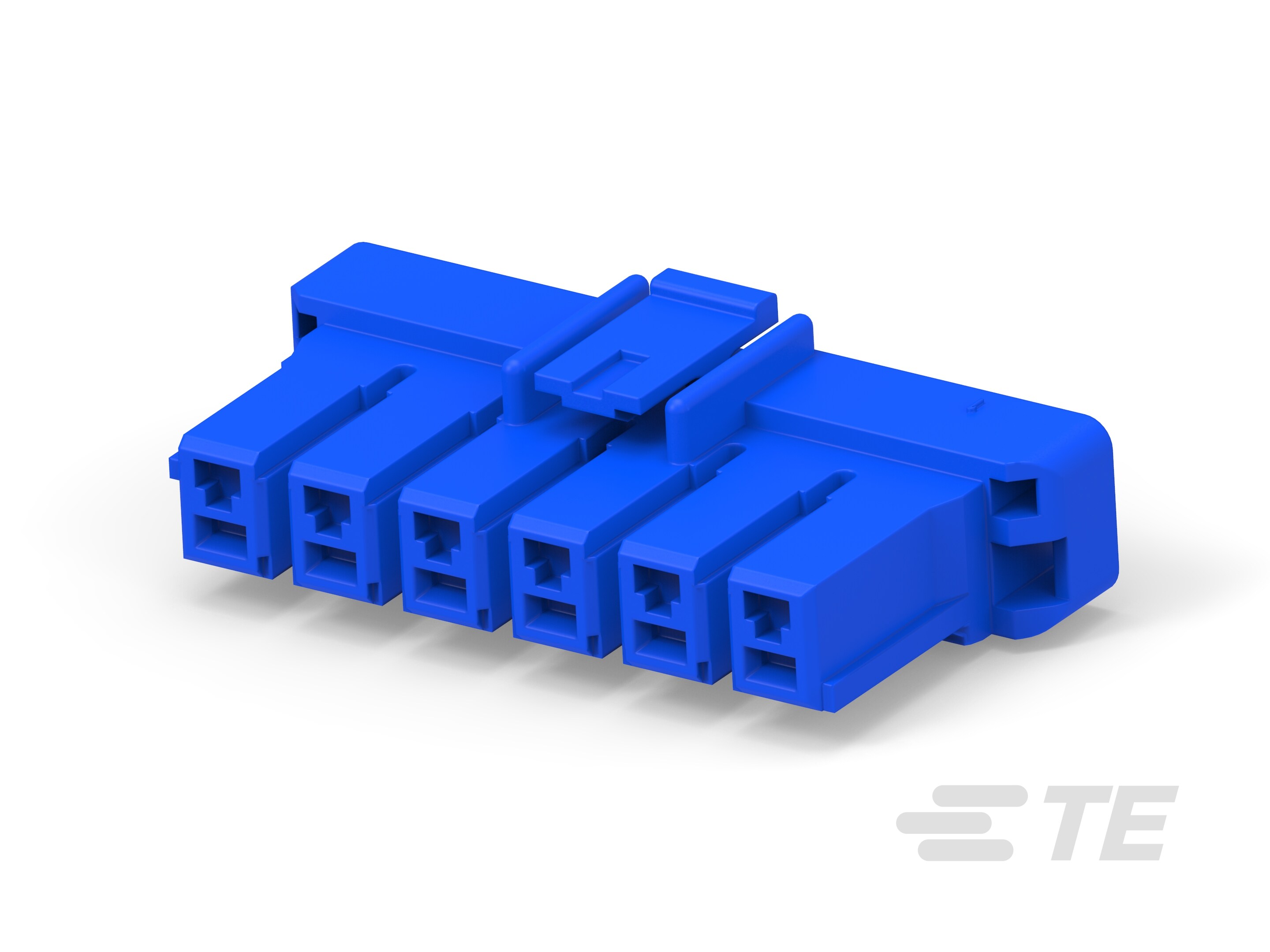

5MM POWER KEY 6P PLUG HSG BLUE-2-1376391-3

2-1376391-3

Active
TE Connectivity AMP Connectors

5MM POWER KEY 6P PLUG HSG BLUE

Find alt
5MM POWER KEY 6P PLUG HSG BLUE-2-1376391-3

2-1376391-3

Active
TE Connectivity AMP Connectors

5MM POWER KEY 6P PLUG HSG BLUE

Find alt

Description

General part information

2-1376391-3

6 Position, Plug, Housing, Crimp, Wire-to-Board, UL 94V-0, 5 mm [.197 in] Centerline, 1 Row, 300 VAC, Wire & Cable, Power, Power Key 5.0

Technical Specifications

Parameters and characteristics for this part

Specification2-1376391-3
ColorBlue
Connector TypePlug
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLatch Lock
Insulation MaterialPolyamide (PA66), Nylon 6/6
Mounting TypeFree Hanging (In-Line)
Number of Positions6
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch0.197 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
