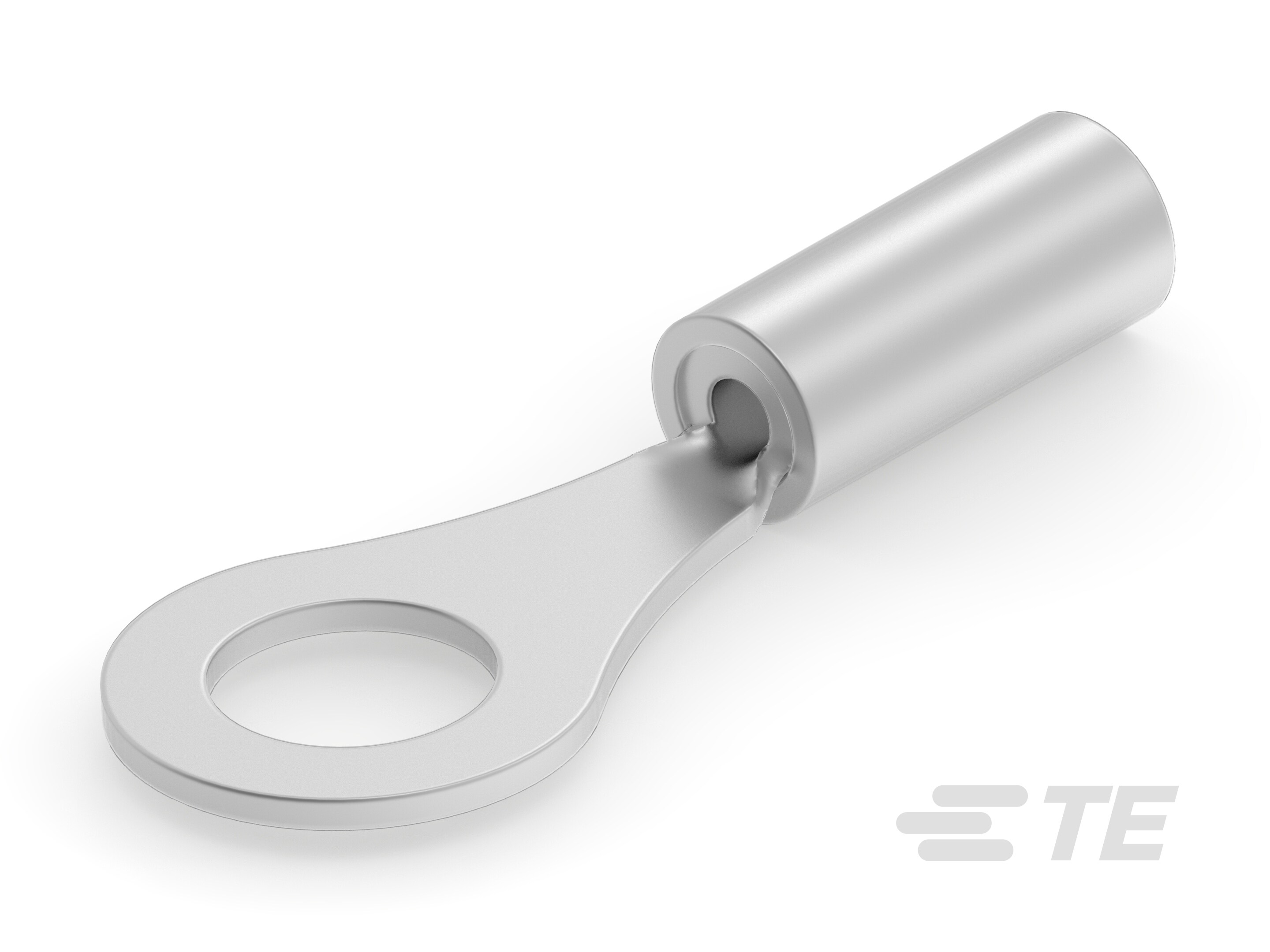

Specification	32861

Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination
Insulation	Non-Insulated
Insulation Diameter (Max)	0.082 in
Insulation Diameter (Min)	0.05 in
Length - Overall	0.679 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.018 in
Width - Outer Edges	0.25 in
Wire Gauge (AWG) (Max)	26 AWG
Wire Gauge (AWG) (Min)	22 AWG

3286 Series

Part	Insulation	Wire Gauge	Termination	Number of Wire Entries	Terminal Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Color	Features	Diameter - Ring ID	Contact Material	Contact Finish	Tab Thickness	Width - Outer Edges	Stud/Tab Size	Length - Overall	Mounting Type	Terminal Style	Length - Ring Center to Termination	Tongue Inside Opening	Insulation Diameter (Min)	Insulation Diameter (Max)	Material - Insulation	Length - Termination	Insulation Diameter	Stud/Tab Size (Type)	Stud/Tab Size	Thickness
TE Connectivity AMP Connectors 328596	Non-Insulated	14 AWG	Crimp	2	Butt Splice Individual Openings Inline
TE Connectivity AMP Connectors 328569	Fully Insulated		Crimp	2	Butt Splice Individual Openings Inline	8 AWG	12 AWG	Red Yellow	Step Up/Step Down
TE Connectivity AMP Connectors 328500	Non-Insulated		Crimp		Rectangular Tongue	16 AWG	22 AWG		Serrated Termination	0.132 in	Copper	Tin	0.031 in	0.277 in	5 Stud	0.786 in	Free Hanging (In-Line)	Single Stud Hole
TE Connectivity AMP Connectors 328588	Non-Insulated		Crimp	2	Butt Splice Individual Openings Inline	19.5 AWG	24 AWG		Brazed Seam Serrated Mating Area
TE Connectivity AMP Connectors 328516	Insulated		Crimp		Flanged	16 AWG	22 AWG	Red	Serrated Termination		Copper	Tin		0.296 in	10 Stud	0.78 in	Free Hanging (In-Line)		0.203 in	0.197 in	0.105 in	0.14 in	Poly-Vinyl Chloride PVC	0.416 in
TE Connectivity AMP Connectors 328592	Non-Insulated		Crimp	2	Butt Splice Individual Openings Inline	16 AWG	18 AWG		Serrated Mating Area
TE Connectivity AMP Connectors 328525	Insulated	8 AWG	Crimp		Circular			Red	Serrated Termination		Copper	Tin		0.587 in	0.3125 in	1.702 in	Free Hanging (In-Line)						Vinyl		0.377 in	Stud	16 Stud 5 Stud	0.04 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PLASTI-GRIP INSULATED BUTT SPLICES, TERMNAL SPLICES AND TERMINALS REPORT

ENG_CD_32861_B1.pdf

Datasheet

WIRE CONN, TERMINALS, BUTT AND PARALLEL CONNECTORS-PLASTI-GRIP, SOLISTRAND, STD B, DIAMOND GRIP, PIDG AND AMPOWER REPORT
