1064542-1
ActiveTE Connectivity AMP Connectors
COAX CBL SSMT TO CABLE 20"
1064542-1
ActiveTE Connectivity AMP Connectors
COAX CBL SSMT TO CABLE 20"
Description
General part information
1064542-1

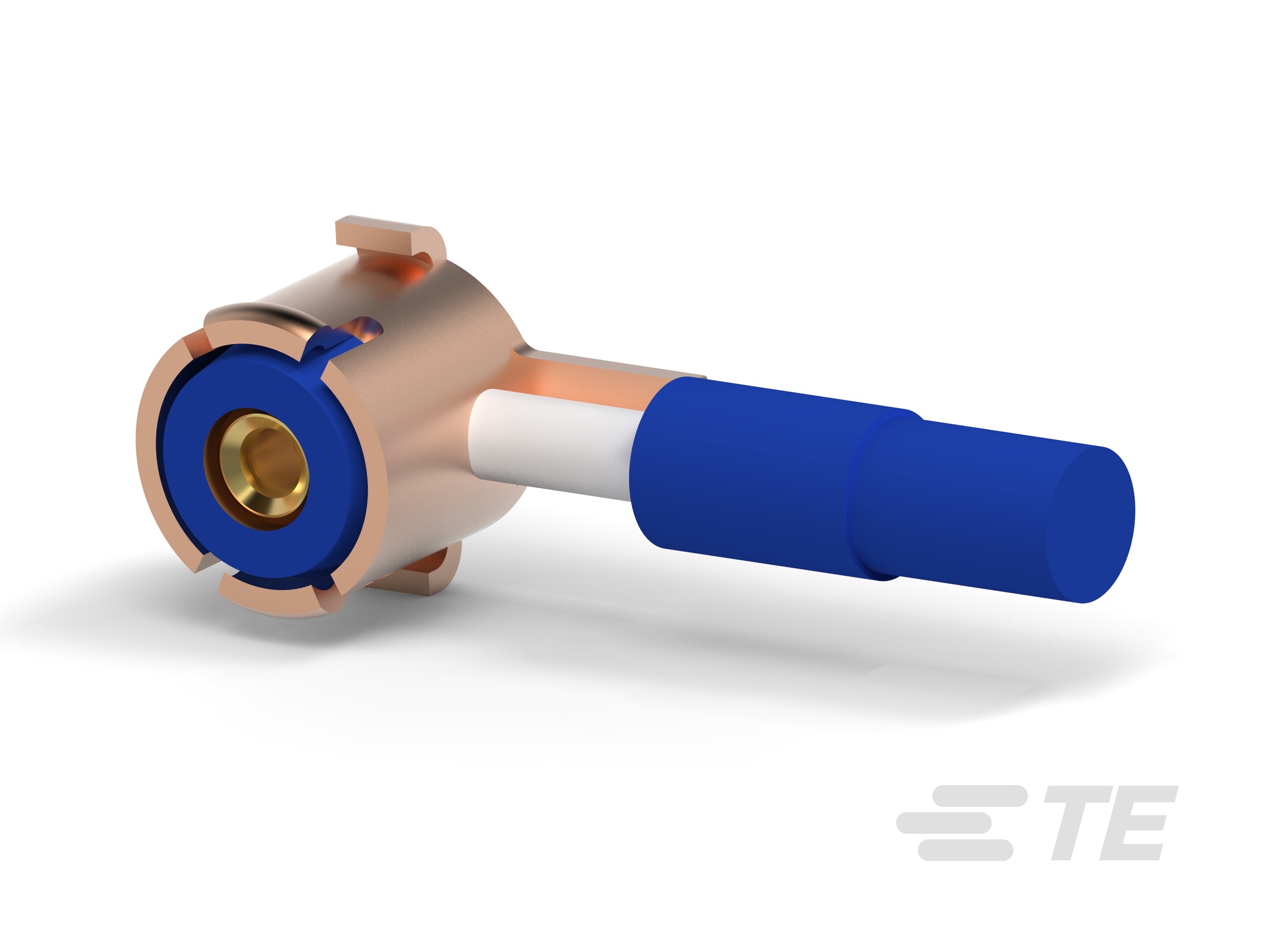

SSMT Pigtail Cable Assembly, .51 m [1.67 ft], Blue Cable, 0 – 6 GHz, 50 ohm, FEP Fluorocarbon Jacket, 30 AWG, 1.32 mm [.052 in] Diameter
Technical Specifications
Parameters and characteristics for this part
| Specification | 1064542-1 |
|---|---|
| 1st Connector | SSMT Jack, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Cable (Round) |
| Color | Blue |
| Features | Shielded |
| Frequency - Max | 6000 MHz |
| Length | 20.08 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SSMT, Cable |
