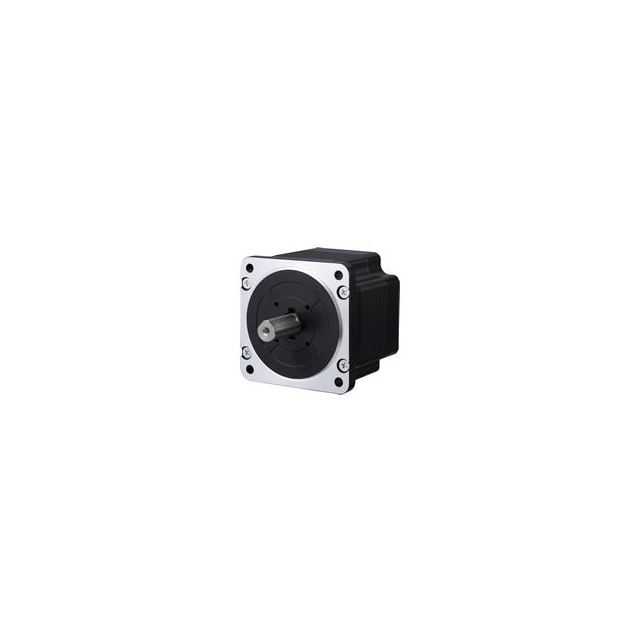

PBM861FXK30-M
ActiveSanyo Denki SanMotion Products
PB, PB, SQ.86, FOR PB4A, , , CE/
Deep-Dive with AI
Search across all available documentation for this part.
PBM861FXK30-M
ActiveSanyo Denki SanMotion Products
PB, PB, SQ.86, FOR PB4A, , , CE/
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PBM861FXK30-M |
|---|---|
| Approval Agency | cURus, CE, TUV |
| Coil Type | Bipolar |
| Diameter - Shaft [diameter] | 14 mm |
| Diameter - Shaft [diameter] | 0.551 in |
| Length - Shaft and Bearing [x] | 30 mm |
| Length - Shaft and Bearing [x] | 1.181 in |
| Mounting Hole Spacing | 2.74 in |
| Mounting Hole Spacing | 69.6 mm |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Rotor Inertia | 35.59 gcm² |
| Size / Dimension [x] | 86 mm |
| Size / Dimension [x] | 3.386 in |
| Size / Dimension [y] | 3.386 in |
| Size / Dimension [y] | 86 mm |
| Torque - Holding (oz-in / mNm) | 439 oz-in |
| Torque - Holding (oz-in / mNm) | 3100 mNm |
| Type | Hybrid |
| Voltage - Rated | 200 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 240.16 | |
| 5 | $ 220.71 | |||
| 10 | $ 212.82 | |||
| 25 | $ 212.71 | |||
Description
General part information
PBM861 Series
Bipolar Stepper Motor Hybrid Frame Size Step 200VAC
Documents
Technical documentation and resources
No documents available
