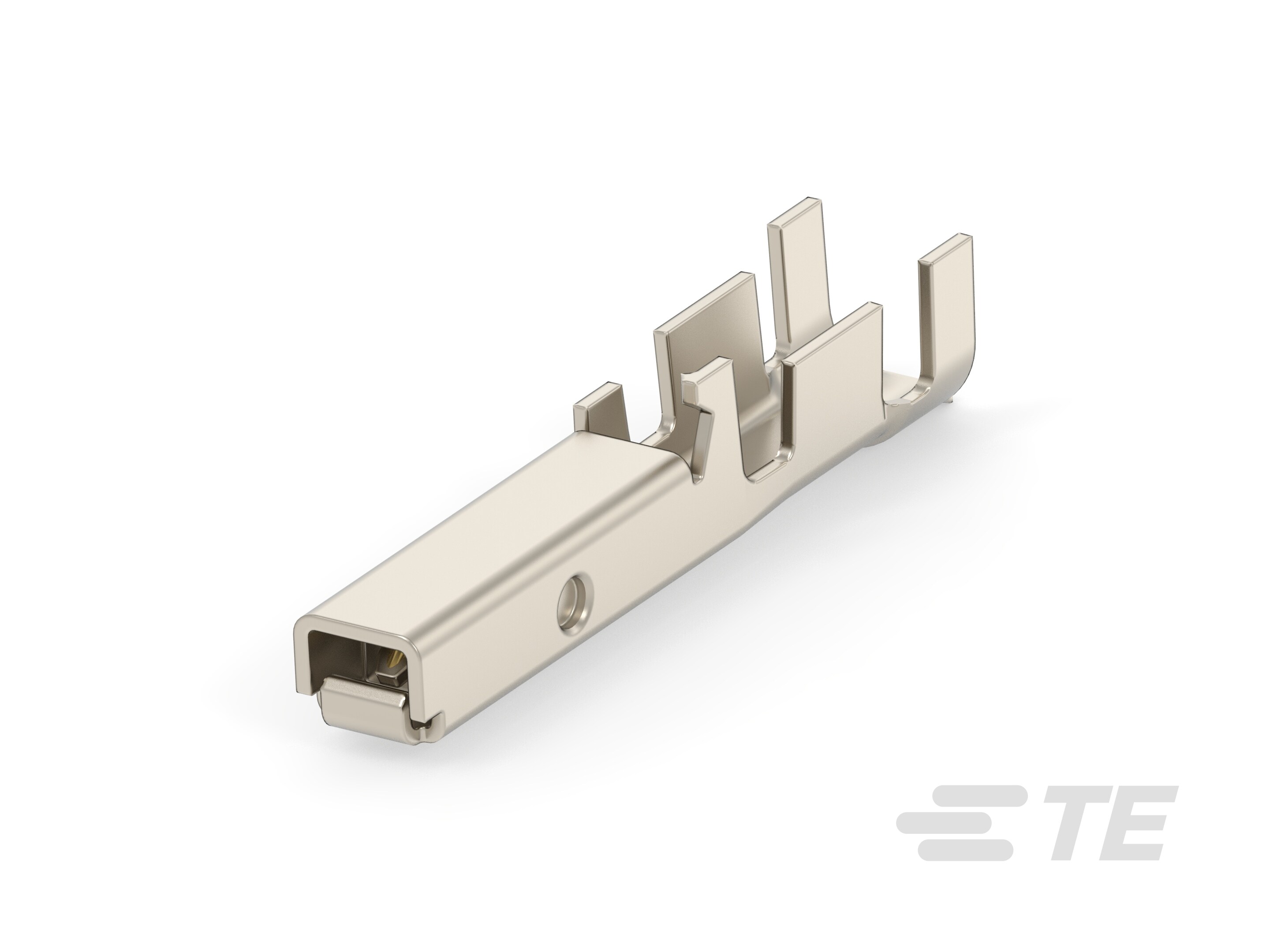

Specification	2311162-4

Contact Finish	PdNi +Gold, Gold
Contact Finish Thickness	15 µin
Contact Termination	Crimp
Pin or Socket	Socket
Type	Power
Wire Gauge (AWG) (Max)	16 AWG
Wire Gauge (AWG) (Min)	14 AWG

Dynamic 3000 Series Series

...

Part	Number of Positions Loaded	Insulation Color	Number of Positions	Insulation Material	Contact Type	Features	Pitch - Mating	Style	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Contact Length - Post	Contact Finish - Post	Connector Type	Shrouding	Termination	Number of Rows	Contact Shape	Contact Finish - Mating	Contact Material	Insulation Height	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Voltage Rating	Row Spacing - Mating	Applications	Pin or Socket	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish Thickness	Contact Finish	Contact Termination	Note	Row Spacing	Color	Pitch	Mated Stacking Height (Max)	Mated Stacking Height (Min)
TE Connectivity AMP Connectors 1-316130-5	All	Black	5	Glass Filled Polyester Thermoplastic	Tab	Board Lock	0.2 in	Board Board or Cable	-55 °C	105 °C	UL94 V-0	0.15 in	Tin	Header	Shrouded - 4 Wall	Solder	1	Rectangular	Tin	Copper Alloy	0.368 in	Detent Lock	Right Angle Through Hole	78.7 Ąin	600 V
TE Connectivity AMP Connectors 177555-2	All	Black	12	Glass Filled Polyester Thermoplastic	Tab	Board Lock	0.2 in	Board Board or Cable	-55 °C	105 °C	UL94 V-0	0.15 in	Tin	Header	Shrouded - 4 Wall	Solder	2	Rectangular	Gold PdNi +Gold	Copper Alloy	0.774 in	Detent Lock	Right Angle Through Hole	15 µin	600 V	0.2 in	General Purpose Industrial
TE Connectivity AMP Connectors 6-178136-2
TE Connectivity AMP Connectors 1-175218-3																												Socket	20.5 AWG	16 AWG	30 µin	Gold PdNi +Gold	Crimp
TE Connectivity AMP Connectors 1-2291728-1			12	Polyester Thermoplastic	Female Socket				-55 °C	105 °C				Receptacle			2						Free Hanging (In-Line)										Crimp	Contacts Not Included	0.3 in	Black	5.08 mm
TE Connectivity AMP Connectors 2-179276-2	All	Black	2	Glass Filled Polyester Thermoplastic	Tab	Board Lock	0.2 in	Board Board or Cable	-55 °C	105 °C	UL94 V-0	0.15 in	Tin	Header	Shrouded - 4 Wall	Solder	1	Rectangular	Gold PdNi +Gold	Copper Alloy	0.368 in	Detent Lock	Right Angle Through Hole	15 µin	600 V
TE Connectivity AMP Connectors 353715-2																												Socket	16 AWG	14 AWG	15 µin	Gold	Crimp
TE Connectivity AMP Connectors 3-175363-1			4	Glass Filled Polyester Thermoplastic	Male Pin				-55 °C	105 °C				Receptacle			2					Latch Lock	Free Hanging (In-Line)										Crimp		0.2 in	Yellow	5.08 mm
TE Connectivity AMP Connectors 1-917484-5																												Socket	16 AWG	14 AWG		Tin	Crimp
TE Connectivity AMP Connectors 2-917338-3	All	Black	4	Glass Filled Polyester Thermoplastic	Tab	Board Lock	0.2 in	Board Board or Cable	-55 °C	105 °C	UL94 V-0	0.15 in	Tin	Header	Shrouded - 4 Wall	Solder	1	Rectangular	Gold PdNi +Gold	Copper Alloy	0.85 in	Detent Lock	Through Hole	30 µin	600 V		General Purpose Industrial											32.5 mm	31 mm
