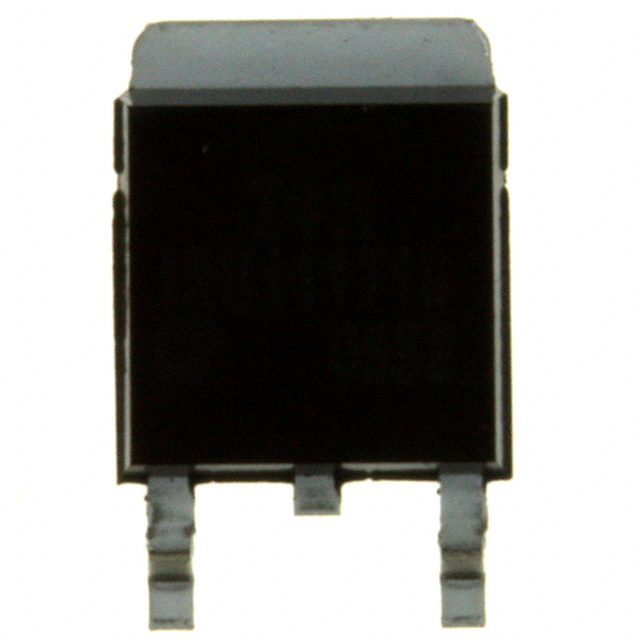

IRU1117-18CP

Obsolete

Infineon Technologies

IC REG LIN 1.8V 800MA 2-UTHINPAK

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC REG LIN 1.8V 800MA 2-UTHINPAK

Technical Specifications

Parameters and characteristics for this part

Specification	IRU1117-18CP

Current - Output	800 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	0 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	2-Ultra Thin-Pak™
Protection Features	Over Current, Over Temperature
PSRR	70 dB
Supplier Device Package	2-Ultra Thin-Pak
Voltage - Input (Max) [Max]	7 V
Voltage - Output (Min/Fixed)	1.8 V
Voltage Dropout (Max) [Max]	1.3 V

Part	Supplier Device Package	PSRR	Current - Output	Mounting Type	Output Configuration	Operating Temperature [Max]	Voltage - Output (Min/Fixed)	Number of Regulators	Package / Case	Output Type	Voltage Dropout (Max) [Max]	Protection Features	Voltage - Input (Max) [Max]	Voltage - Output (Max) [Max]	Current - Quiescent (Iq)	Output Type	Package / Case [y]	Package / Case [x]
Infineon Technologies IRU1117-18CP	2-Ultra Thin-Pak	70 dB	800 mA	Surface Mount	Positive	125 °C	1.8 V	1	2-Ultra Thin-Pak™	1.81 mOhm	1.3 V	Over Current Over Temperature	7 V
Infineon Technologies IRU1117CYTR	SOT-223	70 dB	800 mA	Surface Mount	Positive	150 °C	2.5 V	1	TO-261-4 TO-261AA		1.3 V	Over Current Over Temperature	7 V	3.6 V	10 mA	Adjustable
Infineon Technologies IRU1117-33CS	8-SOIC	70 dB	800 mA	Surface Mount	Positive	125 °C	3.3 V	1	8-SOIC	1.81 mOhm	1.3 V	Over Current Over Temperature	7 V				3.9 mm	0.154 in
Infineon Technologies IRU1117-33CD	TO-252AA (DPAK)	70 dB	800 mA	Surface Mount	Positive	125 °C	3.3 V	1	DPAK (2 Leads + Tab) SC-63 TO-252-3	1.81 mOhm	1.3 V	Over Current Over Temperature	7 V
Infineon Technologies IRU1117-33CY	SOT-223	70 dB	800 mA	Surface Mount	Positive	125 °C	3.3 V	1	TO-261-4 TO-261AA	1.81 mOhm	1.3 V	Over Current Over Temperature	7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 800mA 2-Ultra Thin-Pak
