CDR74NP-101MC
ObsoleteSumida America Components Inc.
FIXED IND 100UH 520MA 540MOHM SM
CDR74NP-101MC
ObsoleteSumida America Components Inc.
FIXED IND 100UH 520MA 540MOHM SM
Description
General part information
CDR74NP-101MC

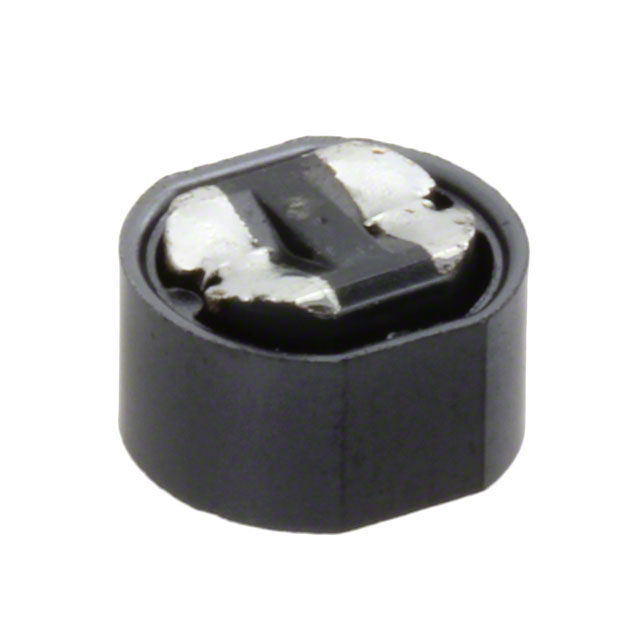

100 µH Shielded Inductor 520 mA 540mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDR74NP-101MC |
|---|---|
| Current Rating | 0.52 A |
| DC Resistance (DCR) (Max) | 540 mOhm |
| Frequency - Self Resonant | 8.59 MHz |
| Height - Seated (Max) | 0.191 in |
| Inductance | 100 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.303 in |
| Size / Dimension Width | 0.28 in |
| Tolerance (Negative) | 15 % |
| Tolerance (Positive) | 20 % |
