8-31818-1
ActiveTE Connectivity AMP Connectors
SOLIS BUTT 22-16 COMM 22-18MIL
8-31818-1
ActiveTE Connectivity AMP Connectors
SOLIS BUTT 22-16 COMM 22-18MIL
Description
General part information
8-31818-1

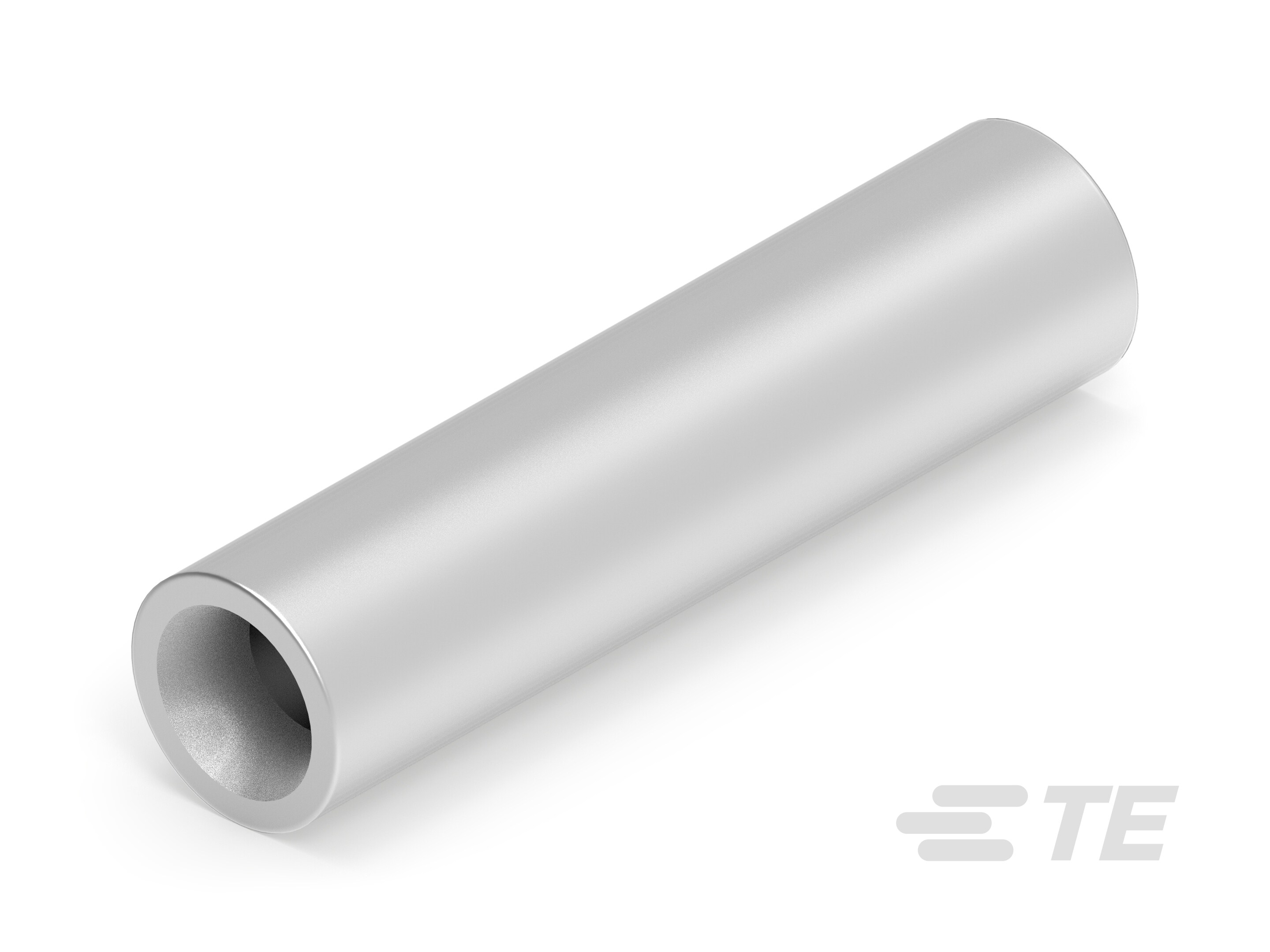

Butt Splice, 22 – 16 AWG, .3 – 1.42 mm² Wire, Serrated, 509 – 3260 CMA, Copper, 16 Serration, 14.68 mm [.578 in] Length, Loose Piece, Closed Barrel
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-31818-1 |
|---|---|
| Features | Brazed Seam, Serrated Mating Area |
| Insulation | Non-Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Inline, Individual Openings, Butt Splice |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
