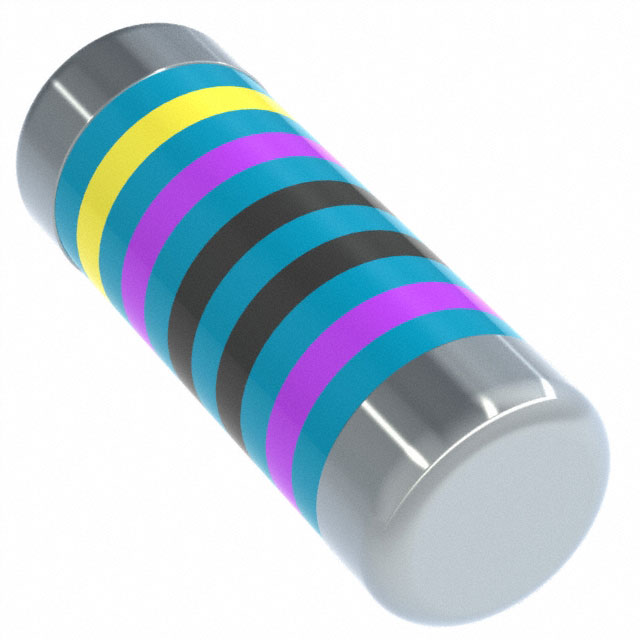

SMA-A0207BTNT470R
NRNDTE Connectivity AMP Connectors
RES THIN FILM 0207(2309) 470 OHM 0.1% 1W ±15PPM/°C MELF PAD SMD T/R AUTOMOTIVE AEC-Q200 MEDICAL
SMA-A0207BTNT470R
NRNDTE Connectivity AMP Connectors
RES THIN FILM 0207(2309) 470 OHM 0.1% 1W ±15PPM/°C MELF PAD SMD T/R AUTOMOTIVE AEC-Q200 MEDICAL
Description
General part information
NEOHM SMA-A Series
470 ohm, Surface Mount Precision Resistor, Thin Film, 0207, 1 W, .1 %, ±15 ppm/°C, Metal Electrode Leadless Face (MELF), 2 Terminations, NEOHM SMA-A
Technical Specifications
Parameters and characteristics for this part
| Specification | SMA-A0207BTNT470R |
|---|---|
| Composition | Metal Film |
| Features | Automotive AEC-Q200 |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0207, MELF |
| Package Name | 0207 |
| Power (Watts) | 1 W |
| Ratings | AEC-Q200 |
| Resistance | 470 Ohm |
| Size / Dimension Diameter | 0.087 in |
| Size / Dimension Length | 0.232 in |
| Temperature Coefficient | 15 ppm/°C |
| Tolerance | 0.1 % |
