PAT-01-DC-B-20-S-9

Active

FiberSource, Inc

SCA-SCU SM 2MM YELLOW SIMPLEX 1M

Deep-Dive with AI

Search across all available documentation for this part.

PAT-01-DC-B-20-S-9

Active

FiberSource, Inc

SCA-SCU SM 2MM YELLOW SIMPLEX 1M

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 5.54
		30	$ 5.38
		50	$ 5.22
		80	$ 5.07
		100	$ 4.92
		250	$ 4.78
		500	$ 4.64
		1000	$ 4.51

Description

General part information

PAT-01 Series

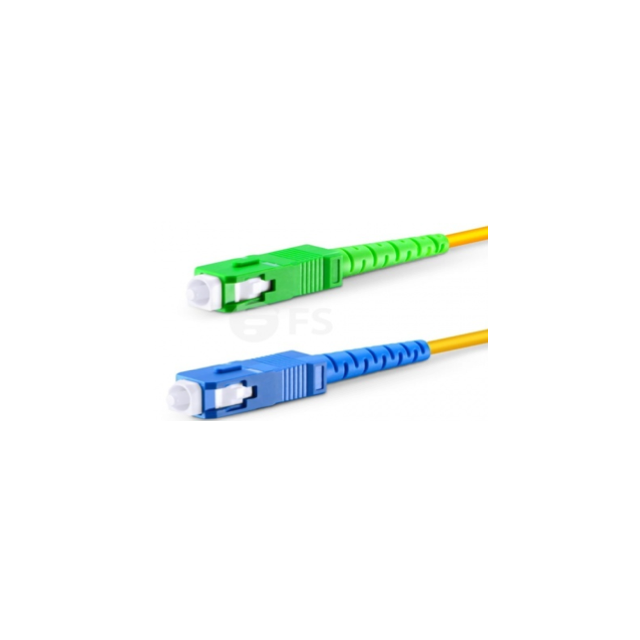

Cable Fiber Optic SC/APC To SC/UPC 9/125 3.3' (1.0m)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PAT-01-DC-B-20-S-9	PAT-01 Series

1st Connector	SC/APC	LC Duplex, LC/UPC, SC Duplex, SC/APC, LC/APC
2nd Connector	SC/UPC	SC Duplex, SC/APC, LC Duplex, SC/PPC, SC/UPC, LC/PPC, LC/UPC
Cable Diameter [diameter]	2 mm	2 mm
Cable Diameter [diameter]	0.08 in	0.08 in
Cable Type	Bend Insensitive Fiber (BIF)	Bend Insensitive Fiber (BIF)
Color - Cable	Yellow	Yellow
Color - Connectors	Blue, Green	Blue, Green
Features	Low Smoke	Low Smoke
Fiber Type	9/125	50/125, 9/125
Insertion Loss	0.2 dB	0.2 - 0.3 dB
Length - Overall [x]	1 m	1 m
Length - Overall [x]	3.3 ft	3.3 ft
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Ratings	LSZH	LSZH
Return Loss	65 dB, 55 dB	55 - 65 dB
Type	Singlemode, Simplex	Singlemode, Duplex, OM3, Multimode, Simplex

PAT-01 Series

FIBER OPTIC CBL LC-SC DUPLEX 1M

Part	Color - Cable	2nd Connector	1st Connector	Type	Color - Connectors	Length - Overall [x]	Length - Overall [x]	Operating Temperature [Max]	Operating Temperature [Min]	Cable Diameter [diameter]	Cable Diameter [diameter]	Insertion Loss	Return Loss	Fiber Type	Features	Cable Type	Ratings
FiberSource, Inc PAT-01-HC-B-20-D-9	Yellow	SC Duplex	LC Duplex	Duplex, Singlemode	Blue	1 m	3.3 ft	85 °C	-40 °C	2 mm	0.08 in	0.3 dB	55 dB
FiberSource, Inc PAT-01-JD-B-20-D-9	Yellow	SC Duplex	LC Duplex	Duplex, Singlemode	Blue	1 m	3.3 ft	85 °C	-40 °C	2 mm	0.08 in	0.3 dB	65 dB
FiberSource, Inc PAT-01-HD-B-20-D-9	Yellow	SC/APC	LC/UPC	Duplex, Singlemode	Blue	1 m	3.3 ft	85 °C	-40 °C	2 mm	0.08 in	0.3 dB	65 dB
FiberSource, Inc PAT-01-HH-B-20-D-9	Yellow	LC Duplex	LC Duplex	Duplex, Singlemode	Blue	1 m	3.3 ft	85 °C	-40 °C	2 mm	0.08 in	0.3 dB	55 dB
FiberSource, Inc PAT-01-DC-B-20-D-9	Yellow	SC Duplex	SC Duplex	Duplex, Singlemode	Blue	1 m	3.3 ft	85 °C	-40 °C	2 mm	0.08 in	0.3 dB	65 dB
FiberSource, Inc PAT-01-NL-F-20-D-A		SC/PPC		Duplex, Multimode, OM3	Blue	1 m	3.3 ft	85 °C	-40 °C	2 mm	0.08 in			50/125
FiberSource, Inc PAT-01-DC-B-20-S-9	Yellow	SC/UPC	SC/APC	Simplex, Singlemode	Blue, Green	1 m	3.3 ft	85 °C	-40 °C	2 mm	0.08 in	0.2 dB	55 dB, 65 dB	9/125	Low Smoke	Bend Insensitive Fiber (BIF)	LSZH
FiberSource, Inc PAT-01-CC-B-20-D-9	Yellow	SC Duplex	SC Duplex	Duplex, Singlemode	Blue	1 m	3.3 ft	85 °C	-40 °C	2 mm	0.08 in	0.3 dB	55 dB
FiberSource, Inc PAT-01-DD-B-20-D-9	Yellow	SC Duplex	SC Duplex	Duplex, Singlemode	Blue	1 m	3.3 ft	85 °C	-40 °C	2 mm	0.08 in	0.3 dB	65 dB
FiberSource, Inc PAT-01-NN-F-20-D-A		LC/PPC		Duplex, Multimode, OM3	Blue	1 m	3.3 ft	85 °C	-40 °C	2 mm	0.08 in			50/125
