1217378-1
ActiveTE Connectivity AMP Connectors

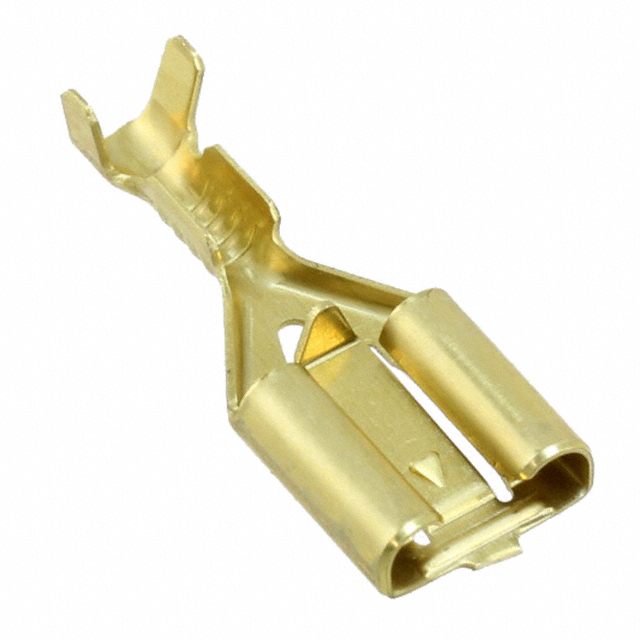

CONN QC RCPT 18-22AWG 0.250
Deep-Dive with AI
Search across all available documentation for this part.
1217378-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 18-22AWG 0.250
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1217378-1 | 1217378 Series |
|---|---|---|
| Contact Finish | - | Tin |
| Contact Material | Brass | Brass |
| Gender | Female | Female |
| Insulation | Non-Insulated | Non-Insulated |
| Insulation Diameter [Max] [diameter] | 2.79 mm | 2.79 mm |
| Insulation Diameter [Max] [diameter] | 0.11 " | 0.11 " |
| Insulation Diameter [Min] [diameter] | 1.52 mm | 1.52 mm |
| Insulation Diameter [Min] [diameter] | 0.06 in | 0.06 in |
| Length - Overall [x] | 0.771 in | 0.771 in |
| Length - Overall [x] | 19.58 mm | 19.58 mm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Tab Length [x] | 7.44 mm | 7.44 mm |
| Tab Length [x] | 0.293 in | 0.293 in |
| Tab Thickness | 0.032 in | 0.032 in |
| Tab Thickness | 0.81 mm | 0.81 mm |
| Tab Width | 6.35 mm | 6.35 mm |
| Tab Width | 0.25 in | 0.25 in |
| Terminal Type | Standard | Standard |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.23 | |
| 10 | $ 0.19 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.13 | |||
| 2500 | $ 0.12 | |||
| Tape & Reel (TR) | 10000 | $ 0.09 | ||
| 20000 | $ 0.09 | |||
| 30000 | $ 0.09 | |||
| 50000 | $ 0.08 | |||
| 70000 | $ 0.08 | |||
| 100000 | $ 0.08 | |||
1217378 Series
CONN QC RCPT 18-22AWG 0.250
| Part | Tab Length [x] | Tab Length [x] | Length - Overall [x] | Length - Overall [x] | Insulation | Tab Thickness | Tab Thickness | Termination | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Type | Contact Material | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Gender | Tab Width | Tab Width | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217378-1 | 7.44 mm | 0.293 in | 0.771 in | 19.58 mm | Non-Insulated | 0.032 in | 0.81 mm | Crimp | Free Hanging (In-Line) | 22 AWG | 17.5 AWG | Standard | Brass | 2.79 mm | 0.11 " | 1.52 mm | 0.06 in | Female | 6.35 mm | 0.25 in | |
TE Connectivity AMP Connectors 1217378-2 | 7.44 mm | 0.293 in | 0.771 in | 19.58 mm | Non-Insulated | 0.032 in | 0.81 mm | Crimp | Free Hanging (In-Line) | 22 AWG | 17.5 AWG | Standard | Brass | 2.79 mm | 0.11 " | 1.52 mm | 0.06 in | Female | 6.35 mm | 0.25 in | Tin |
Description
General part information
1217378 Series
0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Insulated
Documents
Technical documentation and resources
No documents available
