ANT1018
ActiveRFMi
RF ANT 1652MHZ CERAMIC PATCH PI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT1018
ActiveRFMi
RF ANT 1652MHZ CERAMIC PATCH PI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT1018 |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GPS, GLONASS |
| Frequency (Center/Band) | 1.575 GHz, 1.602 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.607 GHz, 1.576 GHz |
| Frequency Range [Min] | 1.574 GHz, 1.597 GHz |
| Gain | -8 dBi, -5.5 dBi |
| Height (Max) | 4 mm |
| Height (Max) [Max] [z] | 0.157 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| Return Loss | -10 dB |
| RF Family/Standard | Navigation |
| Termination | Solder |
| VSWR | 1.8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 5.50 | |
Description
General part information

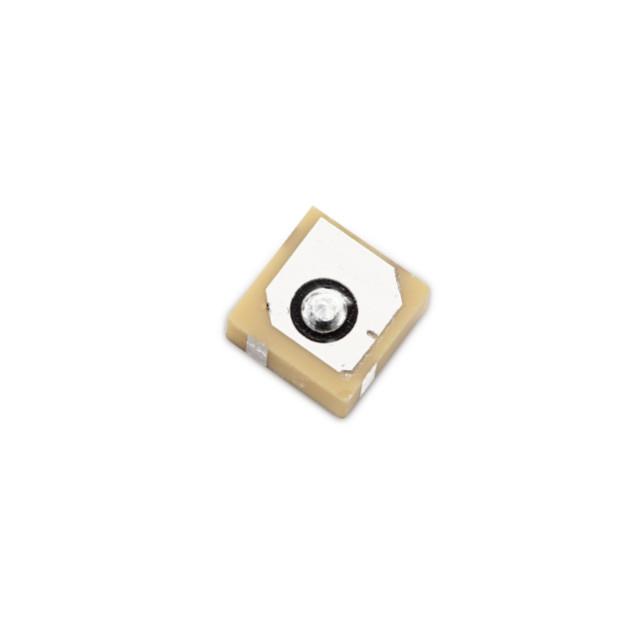

ANT1018
1.575GHz, 1.602GHz GLONASS, GPS Ceramic Patch RF Antenna 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz -8dBi, -5.5dBi Solder Adhesive
Documents
Technical documentation and resources
