1703001
ActivePhoenix Contact
TERM BLK HEADER 5POS GREEN
1703001
ActivePhoenix Contact
TERM BLK HEADER 5POS GREEN
Description
General part information
1703001

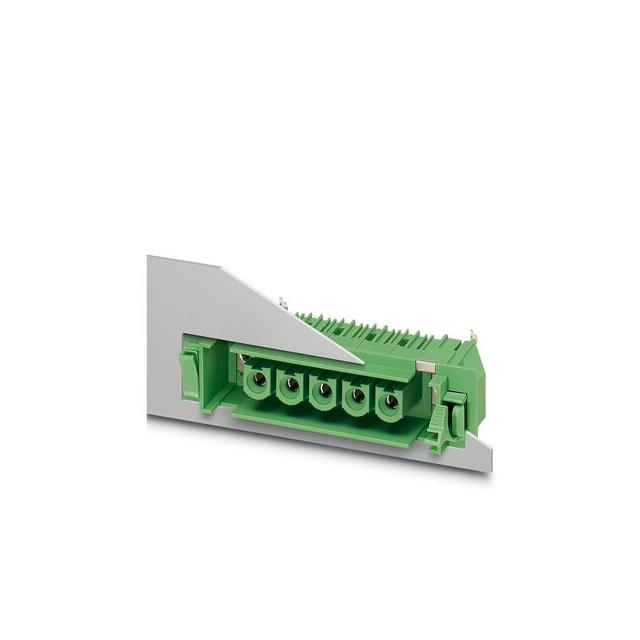

5 Position Terminal Block Header, Female Sockets Green
Technical Specifications
Parameters and characteristics for this part
| Specification | 1703001 |
|---|---|
| Color | Green |
| Current - UL | 5 A |
| Features | Threaded Mating Lock, Shield Connection Feedthrough |
| Front Panel Wire Connection (Method) | Header, Female Sockets |
| Number of Levels | 1 |
| Panel Mount Type | 2 Piece, Snap Lock - Front Flange |
| Panel Thickness (Max) | 0.118 in |
| Panel Thickness (Min) | 0.039 in |
| Pitch | 0.4 in |
| Positions Per Level | 5 |
| Rear Panel Wire Connection | PCB Pins - Right Angle |
| Voltage - UL | 600 V |
| Width | 3.617 in |
