X9420WS16

Active

Renesas Electronics Corporation

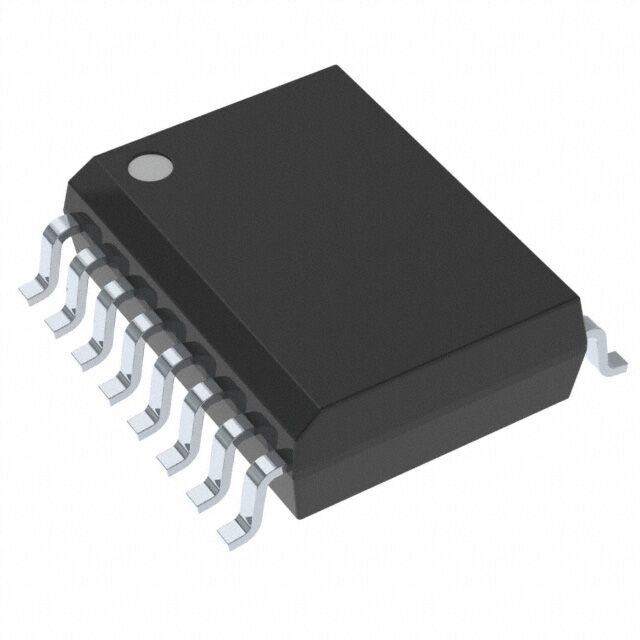

IC DGTL POT 10KOHM 64TAP 16SOIC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

X9420WS16

Active

Renesas Electronics Corporation

IC DGTL POT 10KOHM 64TAP 16SOIC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

X9420 Series

Digital Potentiometer 10k Ohm 1 Circuit 64 Taps SPI Interface 16-SOIC

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	X9420WS16	X9420 Series

Configuration	Potentiometer	Potentiometer
Features	Selectable Address	Selectable Address
Interface	SPI	SPI
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount
Number of Circuits	1	1
Number of Taps	64	64
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Package / Case	16-SOIC	14-TSSOP, 16-SOIC
Package / Case	-	0.173 "
Package / Case	-	4.4 mm
Package / Case [x]	0.295 in	0.295 in
Package / Case [y]	7.5 mm	7.5 mm
Resistance - Wiper (Ohms) (Typ)	40 Ohms	40 - 150 Ohms
Resistance (Ohms)	10k	10k
Resistance (Ohms)	-	2.5 kOhms
Supplier Device Package	16-SOIC	14-TSSOP, 16-SOIC
Taper	Linear	Linear
Temperature Coefficient (Typ)	300 ppm/°C	300 ppm/°C
Tolerance	20 %	20 %
Voltage - Supply	5 V	5 V
Voltage - Supply	-	±2.7V
Voltage - Supply	-	5.5 V

X9420 Series

IC DGT POT 2.5KOHM 64TAP 14TSSOP

Part	Mounting Type	Resistance - Wiper (Ohms) (Typ)	Number of Taps	Interface	Voltage - Supply	Memory Type	Package / Case [custom]	Package / Case [custom]	Package / Case	Supplier Device Package	Number of Circuits	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Resistance (Ohms)	Taper	Features	Temperature Coefficient (Typ)	Configuration	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case [x]	Package / Case [y]	Resistance (Ohms)
Renesas Electronics Corporation X9420YV14Z	Surface Mount	40 Ohms	64	SPI	5 V	Non-Volatile	0.173 "	4.4 mm	14-TSSOP	14-TSSOP	1	20 %	70 °C	0 °C	2.5 kOhms	Linear	Selectable Address	300 ppm/°C	Potentiometer
Renesas Electronics Corporation X9420YV14-2.7	Surface Mount	150 Ohms	64	SPI		Non-Volatile	0.173 "	4.4 mm	14-TSSOP	14-TSSOP	1	20 %	70 °C	0 °C	2.5 kOhms	Linear	Selectable Address	300 ppm/°C	Potentiometer	±2.7V	5.5 V
Renesas Electronics Corporation X9420YV14I-2.7	Surface Mount	150 Ohms	64	SPI		Non-Volatile	0.173 "	4.4 mm	14-TSSOP	14-TSSOP	1	20 %	85 °C	-40 °C	2.5 kOhms	Linear	Selectable Address	300 ppm/°C	Potentiometer	±2.7V	5.5 V
Renesas Electronics Corporation X9420YS16-2.7T1	Surface Mount	150 Ohms	64	SPI		Non-Volatile			16-SOIC	16-SOIC	1	20 %	70 °C	0 °C	2.5 kOhms	Linear	Selectable Address	300 ppm/°C	Potentiometer	±2.7V	5.5 V	0.295 in	7.5 mm
Renesas Electronics Corporation X9420YS16I-2.7T1	Surface Mount	150 Ohms	64	SPI		Non-Volatile			16-SOIC	16-SOIC	1	20 %	85 °C	-40 °C	2.5 kOhms	Linear	Selectable Address	300 ppm/°C	Potentiometer	±2.7V	5.5 V	0.295 in	7.5 mm
Renesas Electronics Corporation X9420YV14I	Surface Mount	40 Ohms	64	SPI	5 V	Non-Volatile	0.173 "	4.4 mm	14-TSSOP	14-TSSOP	1	20 %	85 °C	-40 °C	2.5 kOhms	Linear	Selectable Address	300 ppm/°C	Potentiometer
Renesas Electronics Corporation X9420YV14-2.7T1	Surface Mount	150 Ohms	64	SPI		Non-Volatile	0.173 "	4.4 mm	14-TSSOP	14-TSSOP	1	20 %	70 °C	0 °C	2.5 kOhms	Linear	Selectable Address	300 ppm/°C	Potentiometer	±2.7V	5.5 V
Renesas Electronics Corporation X9420WV14IZ-2.7	Surface Mount	150 Ohms	64	SPI		Non-Volatile	0.173 "	4.4 mm	14-TSSOP	14-TSSOP	1	20 %	85 °C	-40 °C		Linear	Selectable Address	300 ppm/°C	Potentiometer	±2.7V	5.5 V			10k
Renesas Electronics Corporation X9420YS16	Surface Mount	40 Ohms	64	SPI	5 V	Non-Volatile			16-SOIC	16-SOIC	1	20 %	70 °C	0 °C	2.5 kOhms	Linear	Selectable Address	300 ppm/°C	Potentiometer			0.295 in	7.5 mm
Renesas Electronics Corporation X9420YV14T1	Surface Mount	40 Ohms	64	SPI	5 V	Non-Volatile	0.173 "	4.4 mm	14-TSSOP	14-TSSOP	1	20 %	70 °C	0 °C	2.5 kOhms	Linear	Selectable Address	300 ppm/°C	Potentiometer
