A-USB3 A-TOP
ActiveAssmann WSW Components

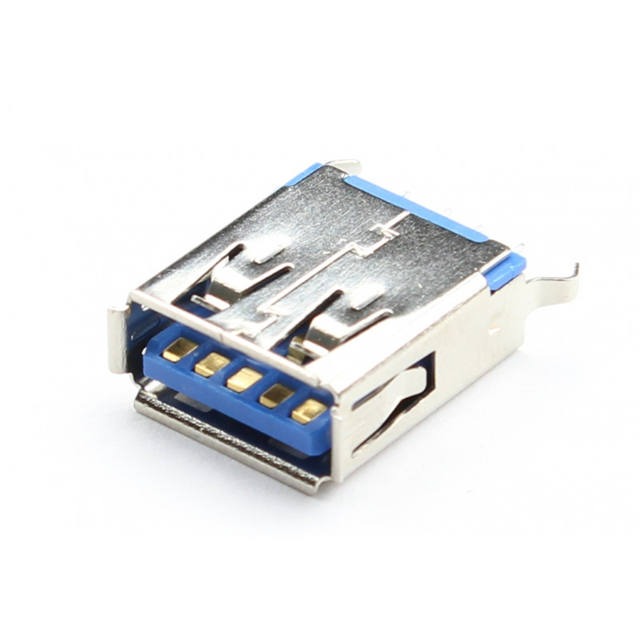

CONN RCPT USB3.2 TYPEA 9POS VERT
A-USB3 A-TOP
ActiveAssmann WSW Components
CONN RCPT USB3.2 TYPEA 9POS VERT
Description
General part information
A-USB3 A-TOP
USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | A-USB3 A-TOP |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating Options | 0.25A, 1.8A |
| Gender | Receptacle |
| Insulation Color | Blue |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 cycles |
| Mounting Feature | Vertical |
| Mounting Type | Through Hole |
| Number of Contacts | 9 |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Shell/Shielding Material | Brass |
| Shielding | Shielded |
| Specifications | Superspeed (USB 3.0), USB 3.1 Gen 1, USB 3.2 Gen 1 |
| Termination | Solder |
