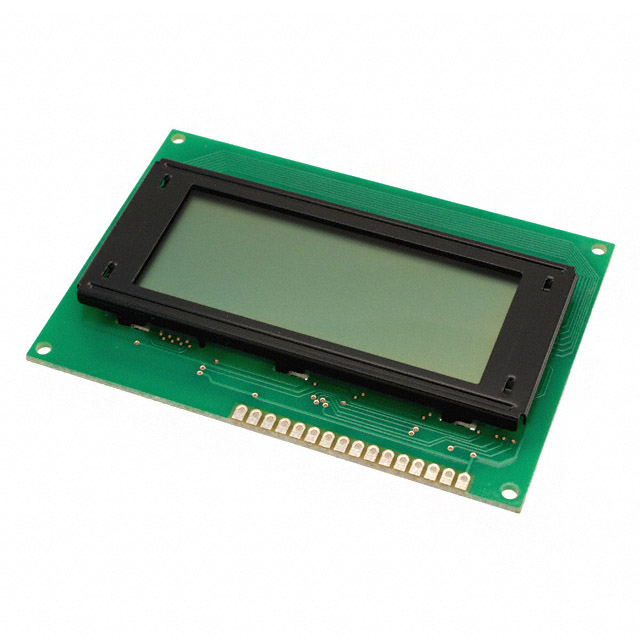

LCM-S01604DSR
ActiveLumex Opto/Components Inc.
LCD MOD 64 DIG 16 X 4 REFLECTIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCM-S01604DSR
ActiveLumex Opto/Components Inc.
LCD MOD 64 DIG 16 X 4 REFLECTIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LCM-S01604DSR | LCM-S01604 Series |
|---|---|---|
| Background Color | Green | Green |
| Backlight | Without Backlight | Without Backlight |
| Character Format [x] | 5 Dots | 5 Dots |
| Character Format [y] | 8 Dots | 8 Dots |
| Character Size | - | 4.75 mm |
| Character Size | - | 3.55 mm |
| Display Format [x] | 16 | 16 |
| Display Format [y] | 4 | 4 |
| Display Mode | Reflective | Reflective, Transflective |
| Display Type | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic, TN - Twisted Nematic |
| Dot Size [x] | 0.55 mm | 0.55 mm |
| Dot Size [y] | 0.55 mm | 0.55 mm |
| Interface | Parallel | Parallel |
| Number of Characters | 64 | 64 |
| Outline L x W x H [x] | 87 mm | 87 mm |
| Outline L x W x H [y] | 60 mm | 60 mm |
| Outline L x W x H [z] | 8.9 mm | 8.9 - 12.7 mm |
| Viewing Area [x] | 65 mm | 62 - 65 mm |
| Viewing Area [y] | 25.6 mm | 25.6 mm |
LCM-S01604 Series
LCD MOD 64 DIG 16 X 4 REFLECTIVE
| Part | Display Format [y] | Display Format [x] | Number of Characters | Viewing Area [x] | Viewing Area [y] | Background Color | Display Mode | Outline L x W x H [x] | Outline L x W x H [z] | Outline L x W x H [y] | Interface | Character Format [y] | Character Format [x] | Backlight | Display Type | Dot Size [x] | Dot Size [y] | Character Size [z] | Character Size [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. LCM-S01604DSR | 4 | 16 | 64 | 65 mm | 25.6 mm | Green | Reflective | 87 mm | 8.9 mm | 60 mm | Parallel | 8 Dots | 5 Dots | Without Backlight | STN - Super-Twisted Nematic | 0.55 mm | 0.55 mm | ||
Lumex Opto/Components Inc. LCM-S01604DSF | 4 | 16 | 64 | 62 mm | 25.6 mm | Green | Transflective | 87 mm | 12.7 mm | 60 mm | Parallel | 8 Dots | 5 Dots | STN - Super-Twisted Nematic | 0.55 mm | 0.55 mm | 4.75 mm | 3.55 mm | |
Lumex Opto/Components Inc. LCM-S01604DTR | 4 | 16 | 64 | 62 mm | 25.6 mm | Reflective | 87 mm | 8.9 mm | 60 mm | Parallel | 8 Dots | 5 Dots | Without Backlight | TN - Twisted Nematic | 0.55 mm | 0.55 mm | |||
Lumex Opto/Components Inc. LCM-S01604DTF | 4 | 16 | 64 | 62 mm | 25.6 mm | Transflective | 87 mm | 12.7 mm | 60 mm | Parallel | 8 Dots | 5 Dots | TN - Twisted Nematic | 0.55 mm | 0.55 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.61 | |
| 10 | $ 20.05 | |||
| 100 | $ 17.52 | |||
| 500 | $ 16.07 | |||
Description
General part information
LCM-S01604 Series
Character Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel 87.00mm x 60.00mm x 8.90mm
