T2051442101-000
ActiveTE Connectivity AMP Connectors

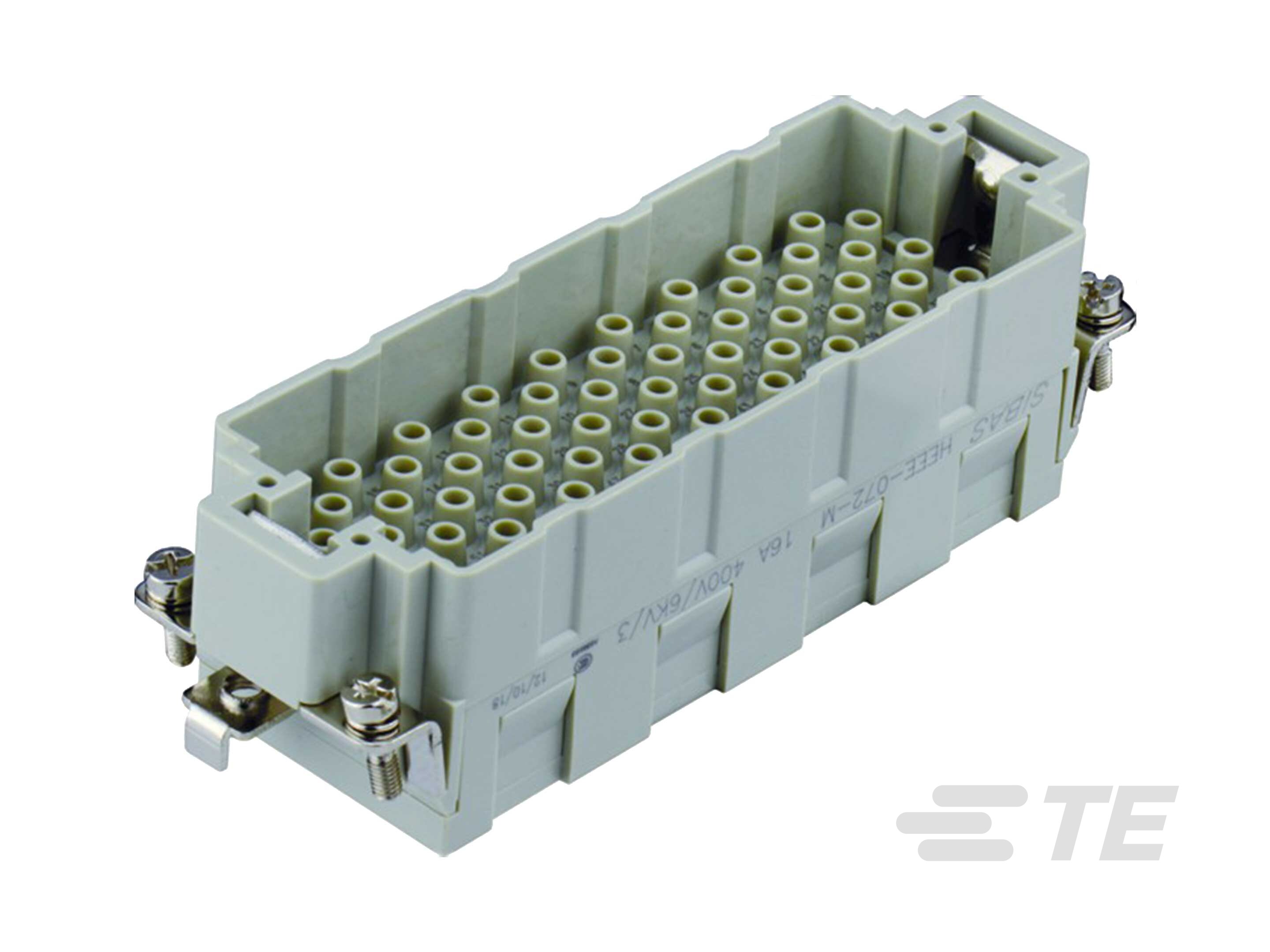

HEEE-072-M 73-144
T2051442101-000
ActiveTE Connectivity AMP Connectors
HEEE-072-M 73-144
Description
General part information
T2051442101-000
Insert for Contacts, Pin, 72+PE Pole Configuration, Crimp, 26 – 12 AWG, .14 – 4 mm² Wire, 16 A, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | T2051442101-000 |
|---|---|
| Connector Type | Insert without Contacts |
| Contact Type | CEM, DEM |
| Current Rating | 16 A |
| Gender | Male |
| Number of Positions | 72 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | H24B |
| Termination Style | Crimp |
| Voltage Rating | 400 V |
