2213616-3
ActiveTE Connectivity AMP Connectors
HERM BLADE & RECPT,6 POS,POST,SEL GOLD
2213616-3
ActiveTE Connectivity AMP Connectors
HERM BLADE & RECPT,6 POS,POST,SEL GOLD
Description
General part information
2213616-3

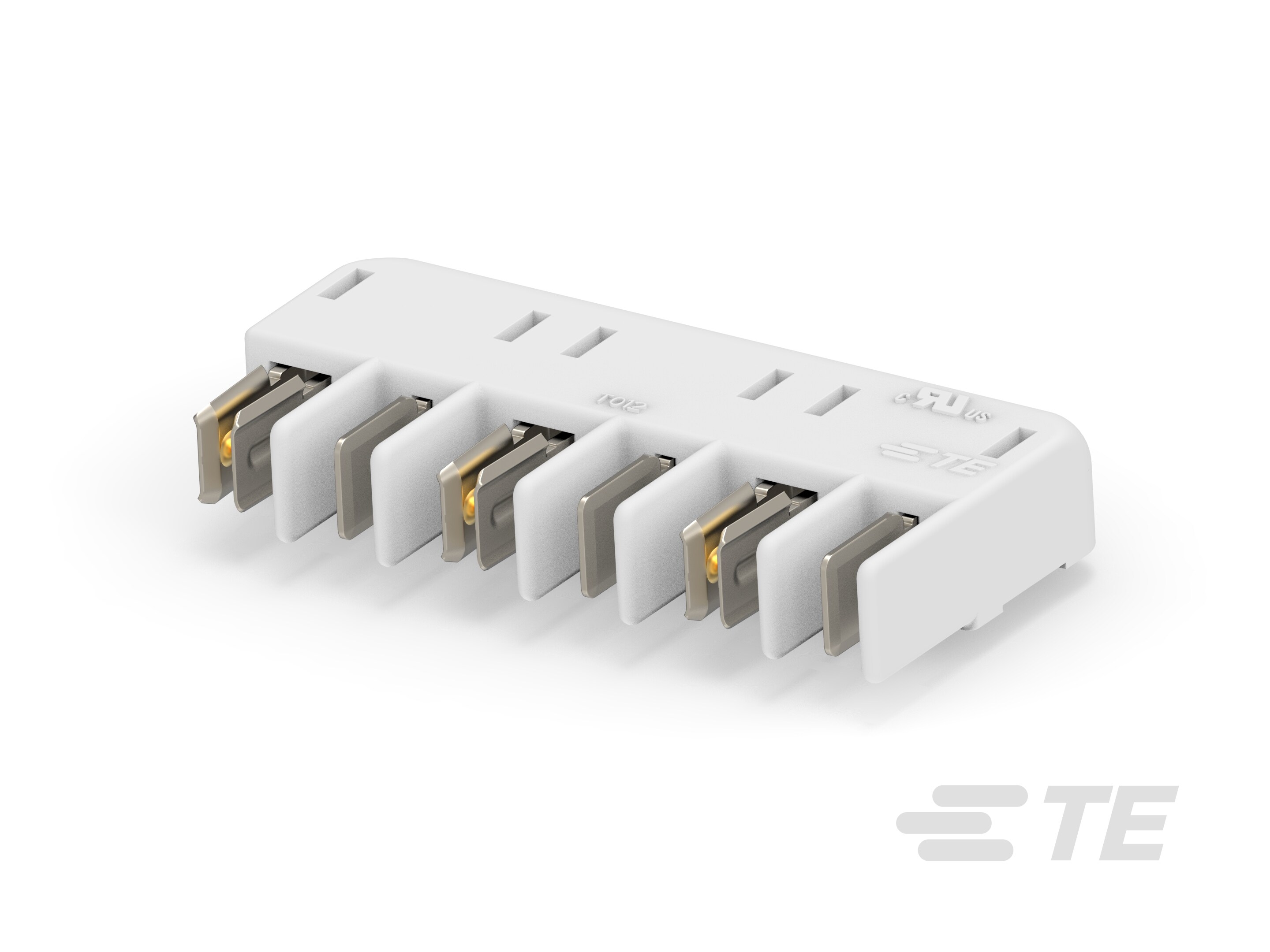

PCB Mount Hermaphroditic Connector, Horizontal, Board-to-Board, 6 Position, 4 mm Centerline, Gold (Au), Surface Mount, Power & Signal, Natural
Technical Specifications
Parameters and characteristics for this part
| Specification | 2213616-3 |
|---|---|
| Connector Type | Receptacle, Hermaphroditic, Blade |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer, LCP |
| Mounting Type | Board Edge, Surface Mount, Right Angle |
| Number of Positions | 6 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.157 in |
| Style | Board |
| Termination | Solder |
