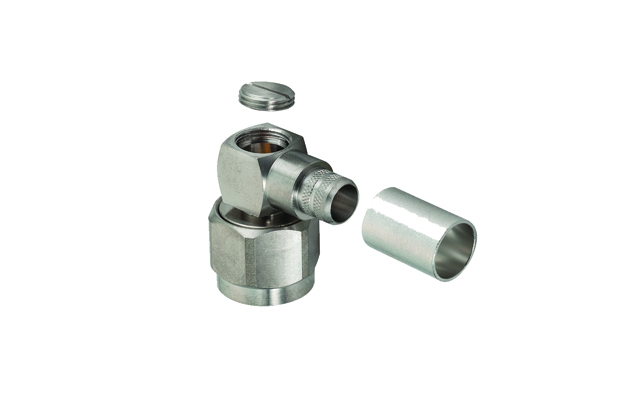

Specification	TC-400-NMH-RA-SS

Body Material	Stainless Steel
Cable Group	LMR-400
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	2.5 GHz
Housing Color	Silver
Impedance	50 Ohm
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Crimp
Voltage Rating	1000 V

TC-400 Series

Part	Contact Termination	Connector Style	Cable Group	Housing Color	Impedance	Fastening Type	Frequency - Max	Center Contact Material	Mounting Type	Connector Type	Shield Termination	Number of Ports	Operating Temperature (Max)	Operating Temperature (Min)	Center Contact Plating	Voltage Rating	Body Finish	Dielectric Material	Mating Cycles	Body Material	Insertion Loss	Mounting Feature
McGill Microwave Systems TC-400-NMH-RA-D	Solder	N Type	LMR-400	Silver	50 Ohm	Threaded	11 GHz	Brass	Free Hanging (In-Line) Right Angle	Male Pin Plug	Crimp	1	155 °C	-55 °C	Gold	1000 V	White Bronze	Polytetrafluoroethylene (PTFE)	500 cycles	Brass
McGill Microwave Systems TC-400-QDSM	Solder	QDS	LMR-400	Silver	50 Ohm	Threaded	3 GHz		Free Hanging (In-Line)	Male Pin Plug	Clamp	1			Gold		White Bronze	Polytetrafluoroethylene (PTFE)
McGill Microwave Systems TC-400-NM-75	Solder	N Type	LMR-400-75	Silver	75 Ohm	Threaded	2.5 GHz	Brass	Free Hanging (In-Line)	Male Pin Plug	Crimp	1	85 °C	-40 °C	Gold		White Bronze	Polytetrafluoroethylene (PTFE)		Brass
McGill Microwave Systems TC-400-QNM-X	Solder	QN	LMR-400	Silver	50 Ohm	Snap-On	6000 MHz	Brass	Free Hanging (In-Line)	Male Pin Plug	Crimp	1	85 °C	-55 °C	Gold	1500 V	White Bronze	Polytetrafluoroethylene (PTFE)	500 cycles	Brass
McGill Microwave Systems TC-400-TM-RA-D	Solder	TNC	LMR-400	Silver	50 Ohm	Threaded	11 GHz	Brass	Free Hanging (In-Line) Right Angle	Male Pin Plug	Crimp	1	125 °C	-55 °C	Gold	500 V	White Bronze	Polytetrafluoroethylene (PTFE)	500 cycles	Brass
McGill Microwave Systems TC-400-716M-RA-D	Solder	7/16 DIN	LMR-400	Silver	50 Ohm	Threaded	3 GHz	Beryllium Copper	Free Hanging (In-Line) Right Angle	Male Pin Plug	Crimp	1	155 °C	-55 °C	Gold	500 V	White Bronze	Polytetrafluoroethylene (PTFE)	500 cycles	Brass
McGill Microwave Systems TC-400-MUHF	Solder	Mini UHF	LMR-400	Silver	50 Ohm	Threaded	1 GHz	Brass	Free Hanging (In-Line)	Male Pin Plug	Crimp	1	85 °C	-40 °C	Gold		Nickel	Polyoxymethylene (POM)		Brass	0.15 dB
McGill Microwave Systems TC-400-NM-RP	Solder	RP-N Type	LMR-400	Silver	50 Ohm	Threaded	3 GHz	Beryllium Copper	Free Hanging (In-Line)	Female Socket Plug	Crimp	1	85 °C	-40 °C	Gold	1000 V	Nickel	Polytetrafluoroethylene (PTFE)		Brass
McGill Microwave Systems TC-400-TF-X	Solder	TNC	LMR-400	Silver	50 Ohm	Threaded	6000 MHz	Beryllium Copper	Free Hanging (In-Line)	Female Socket Jack	Crimp	1	125 °C	-55 °C	Gold	500 V	White Bronze	Polytetrafluoroethylene (PTFE)	500 cycles	Brass
McGill Microwave Systems TC-400-NFC-BH (A)	Solder	N Type	LMR-400	Silver	50 Ohm	Threaded	11 GHz	Beryllium Copper	Panel Mount	Female Socket Jack	Clamp	1	165 °C	-65 °C	Gold		White Bronze	Polytetrafluoroethylene (PTFE)		Brass		Bulkhead Front Side Nut
