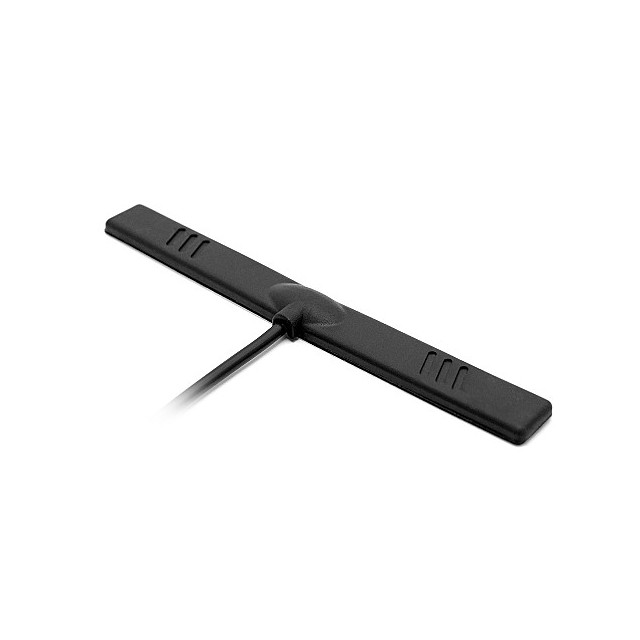

2J5215P-433
Active2J Antennas
TBAR 433MHZ ADH M
2J5215P-433
Active2J Antennas
TBAR 433MHZ ADH M
Description
General part information
2J5215P-433
TBAR 433MHZ ADH M
Technical Specifications
Parameters and characteristics for this part
| Specification | 2J5215P-433 |
|---|---|
| Antenna Type | Flat Bar |
| Applications | LoRa, ISM |
| Features | Cable, 3m |
| Frequency (Center/Band) | 434 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 435 MHz |
| Frequency Range (Min) | 433 MHz |
| Gain | 1.5 dBi |
| Height (Max) | 0.256 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Power - Max | 50 VA |
| Return Loss | -11 dB |
| RF Family/Standard | General ISM |
| Termination Type | SMA Male |
| VSWR | 1.8 |
