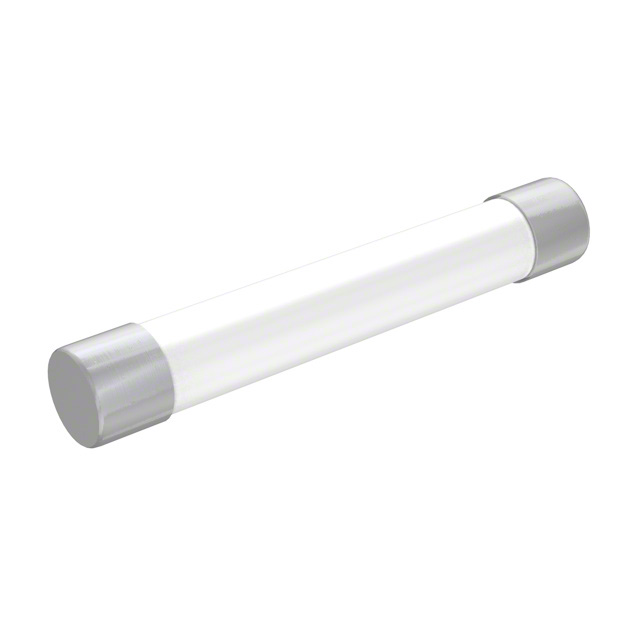

FWS-12A20F
ActiveEaton - Electronics Division
FUSE CARTRIDGE 12A 1.4KVAC/1KVDC
FWS-12A20F
ActiveEaton - Electronics Division
FUSE CARTRIDGE 12A 1.4KVAC/1KVDC
Description
General part information
FWS-12A20F
12A 1.4 kVAC 1 kVDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | FWS-12A20F |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CE |
| Breaking Capacity (AC) | 45 kA |
| Breaking Capacity (DC) | 30 kA |
| Current Rating | 12 A |
| Fuse Type | Cartridge |
| Melting I²t | 170 |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension Diameter | 0.807 in |
| Size / Dimension Length | 5 in |
| Voltage Rating - AC | 1400 V |
| Voltage Rating - DC | 1 kV |
