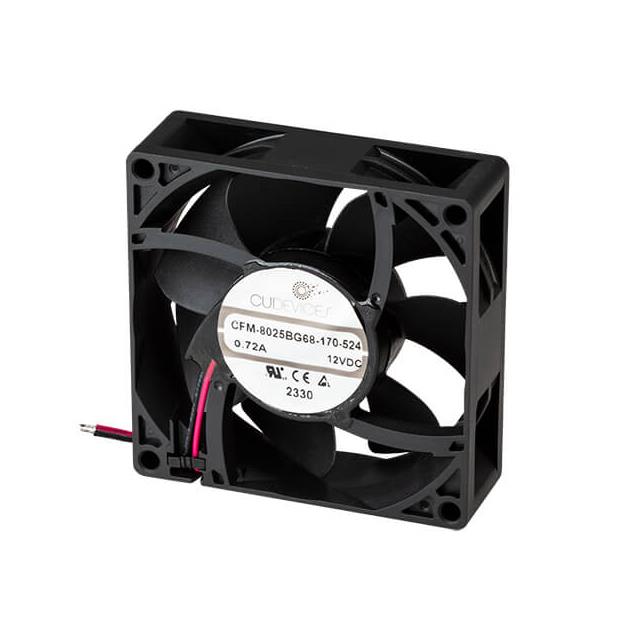

CFM-8025BG68-170-524-20
ActiveSame Sky (Formerly CUI Devices)
DC AXIAL FAN, 80 MM SQUARE, 25 M
CFM-8025BG68-170-524-20
ActiveSame Sky (Formerly CUI Devices)
DC AXIAL FAN, 80 MM SQUARE, 25 M
Description
General part information
CFM-8025BG68-170-524-20
Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 73.6 CFM (2.06m³/min) 3 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM-8025BG68-170-524-20 |
|---|---|
| Air Flow | 73.6 CFM |
| Approval Agency | cURus, TUV, CE |
| Bearing Type | Ball |
| Current Rating | 0.72 A |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach) |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Lifetime | 70000 Hrs |
| Material - Blade | PBT, Polybutylene Terephthalate |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Noise | 52.4 dB |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 8.64 W |
| RPM | 7000 RPM |
| Size / Dimension Height | 80 mm |
| Size / Dimension Length | 80 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 0.83 in H2O |
| Termination | 3 Wire Leads |
| Termination Leads Count | 3 |
| Termination Type | Wire Leads |
| Voltage - Rated | 12 VAC |
| Voltage Range (Max) | 13.2 VDC |
| Voltage Range (Min) | 10.8 VDC |
| Width | 1 in |
