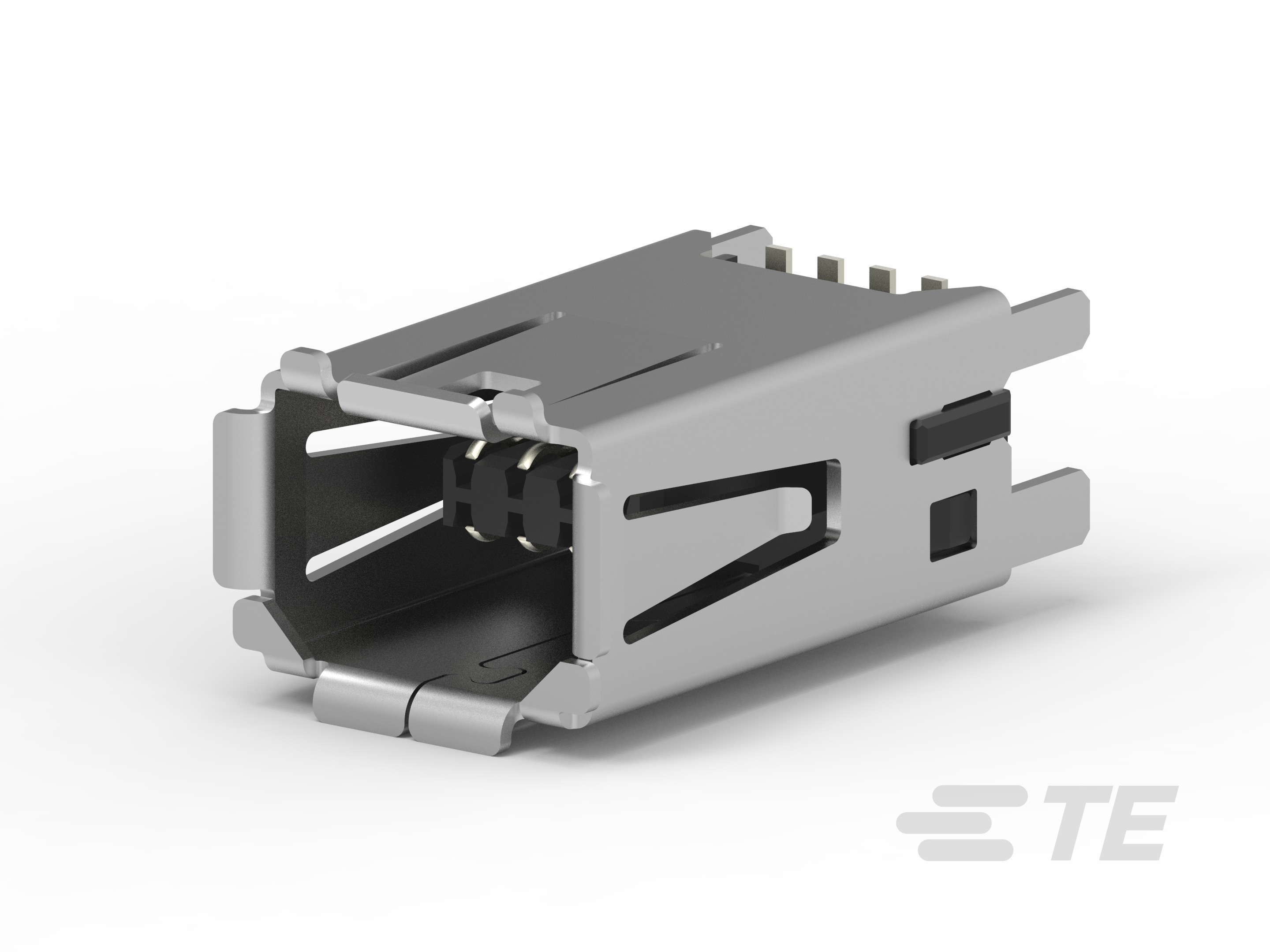

VERTICAL SMT TYPE MINI IO REC PLUS CONN-2271656-2

2271656-2

Active
TE Connectivity AMP Connectors

VERTICAL SMT TYPE MINI IO REC PLUS CONN

Find alt
VERTICAL SMT TYPE MINI IO REC PLUS CONN-2271656-2

2271656-2

Active
TE Connectivity AMP Connectors

VERTICAL SMT TYPE MINI IO REC PLUS CONN

Find alt

Description

General part information

2271656-2

Industrial Mini I/O, Jack, Shielded, Cat 5e, Cable-to-Board, Vertical, Top Entry, LCP, Printed Circuit Board, Industrial Mini I/O Connectors

Technical Specifications

Parameters and characteristics for this part

Specification2271656-2
Connector StyleReceptacle
Connector TypeMulti-Purpose
Contact FinishGold
Contact Finish Thickness19.7 µin
FeaturesBoard Guide
Mounting TypeSurface Mount
Number of Positions8
TerminationSolder
