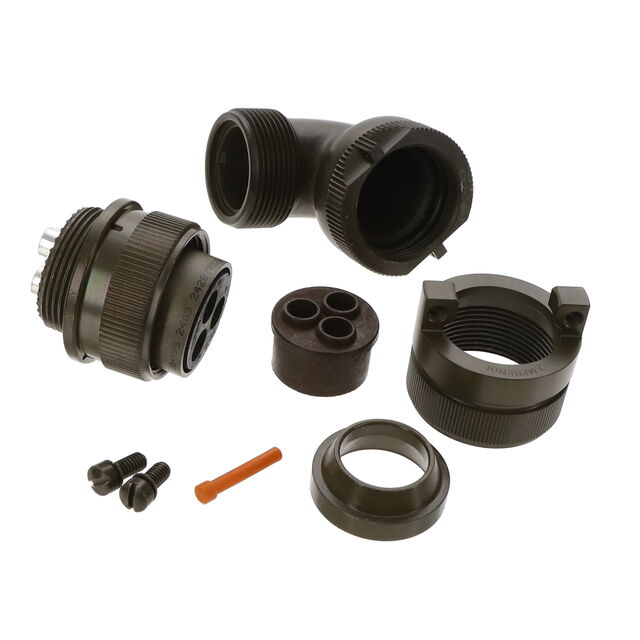

Specification	MS3108E20-19S

Applications	Marine, Military
Cable Opening	0.656 in
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating	46 A
Fastening Type	Threaded
Features	Cable Clamp, Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Positions	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate, Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert Length	20 mm
Shell Size - Insert Width	19 mm
Shielding	Unshielded
Termination	Solder Cup

MS3108E20 Series

Part	Qualification	Features	Contact Material	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Shell Finish	Insert Material	Ingress Protection	Shielding	Termination	Orientation	Fastening Type	Color	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Backshell Material	Plating	Shell Material	Primary Material	Contact Finish - Mating	Number of Positions	Applications	Mounting Type	Shell Size - Insert Width	Shell Size - Insert Length	Current Rating	Cable Opening	Grade	Current Rating Options	Voltage Rating (DC)	Voltage Rating (AC)
Amphenol Aerospace Operations MS3108E20-29S	MIL-5015	Cable Clamp Coupling Nut	Copper Alloy	Female Sockets Plug	125 °C	-55 °C	Cadmium Olive Drab Chromate	Neoprene	Environment Resistant	Unshielded	Solder Cup	N (Normal)	Threaded	Olive Drab	20	29	Aluminum Alloy	Olive Drab Chromate over Cadmium	Aluminum Alloy	Metal	Silver	17	Marine Military	Free Hanging (In-Line) Right Angle
Amphenol Aerospace Operations MS3108E20-19P	MIL-5015	Cable Clamp Coupling Nut	Copper Alloy	Male Pins Plug	125 °C	-55 °C	Cadmium Olive Drab Chromate	Neoprene	Environment Resistant	Unshielded	Solder Cup	N (Normal)	Threaded	Olive Drab			Aluminum Alloy	Olive Drab Chromate over Cadmium	Aluminum Alloy	Metal	Silver	3	Marine Military	Free Hanging (In-Line) Right Angle	19 mm	20 mm
Amphenol Aerospace Operations MS3108E20-15P	MIL-DTL-5015	Cable Clamp Coupling Nut	Copper Alloy	Male Pins Plug	125 °C	-55 °C	Cadmium Olive Drab Chromate	Neoprene	Environment Resistant	Unshielded	Solder Cup	N (Normal)	Threaded	Olive Drab					Aluminum Alloy	Metal	Silver	7	Marine Military	Free Hanging (In-Line) Right Angle	15 mm	20 mm	23 A	0.656 in	Military
Amphenol Aerospace Operations MS3108E20-24S	MIL-DTL-5015	Strain Relief	Copper Alloy	Female Sockets Plug	125 °C	-55 °C	Cadmium Olive Drab Chromate	Neoprene	Environment Resistant	Unshielded	Solder Cup	N (Normal)	Threaded	Olive Drab	20	24			Aluminum Alloy	Metal	Silver	4	Marine Military	Free Hanging (In-Line) Right Angle				0.656 in	Military	13A 46A
Amphenol Aerospace Operations MS3108E20-9P
Amphenol Aerospace Operations MS3108E20-6S
Amphenol Aerospace Operations MS3108E20-27P	MIL-DTL-5015	Cable Clamp Coupling Nut	Copper Alloy	Male Pins Plug	125 °C	-55 °C	Cadmium Olive Drab Chromate	Neoprene	Environment Resistant	Unshielded	Solder Cup	N (Normal)	Threaded	Olive Drab	20	27			Aluminum Alloy	Metal	Silver	14	Marine Military	Free Hanging (In-Line) Right Angle			13 A	0.656 in	Military
Amphenol Aerospace Operations MS3108E20-25S
Amphenol Aerospace Operations MS3108E20-7S
Amphenol Aerospace Operations MS3108E20-4S	MIL-DTL-5015	Cable Clamp Coupling Nut	Copper Alloy	Female Sockets Plug	125 °C	-55 °C	Cadmium Olive Drab Chromate	Neoprene	Environment Resistant	Unshielded	Solder Cup	N (Normal)	Threaded	Olive Drab					Aluminum Alloy	Metal	Silver	4	Marine Military	Free Hanging (In-Line) Right Angle	4 mm	20 mm	23 A	0.656 in	Military		1250 VDC	900 VAC
