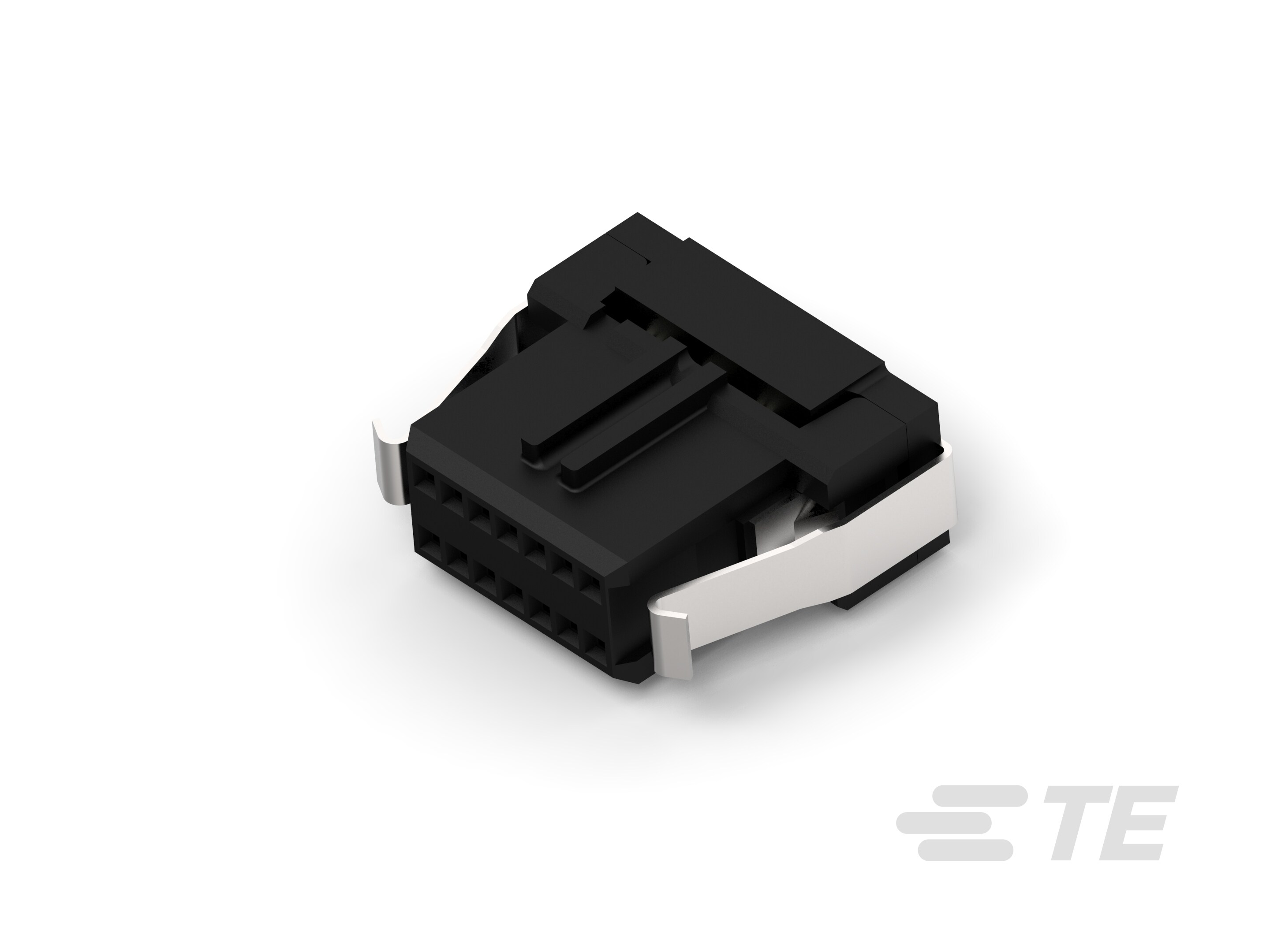

2-111196-6
ActiveTE Connectivity AMP Connectors
CONN RCPT 14P IDC 30-32AWG GOLD
2-111196-6
ActiveTE Connectivity AMP Connectors
CONN RCPT 14P IDC 30-32AWG GOLD
Description
General part information
2-111196-6
Cable-to-Board, 14 Position, 1.27 mm [.05 in] Centerline, 2 Row, Receptacle, Wire & Cable, Signal, Cable Mount (Free-Hanging), Ribbon Cable Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-111196-6 |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Feed Through |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Pitch | 0.05 in |
| Row Spacing | 0.1 in |
| Wire Gauge (AWG) (Max) | 32 AWG |
| Wire Gauge (AWG) (Min) | 30 AWG |
| Wire Type | Ribbon Cable |
