TAZH156K025CRSZ0800
ActiveKYOCERA AVX
TANTALUM CAPACITORS - SOLID SMD 15UF 25V 10% H
TAZH156K025CRSZ0800
ActiveKYOCERA AVX
TANTALUM CAPACITORS - SOLID SMD 15UF 25V 10% H
Description
General part information

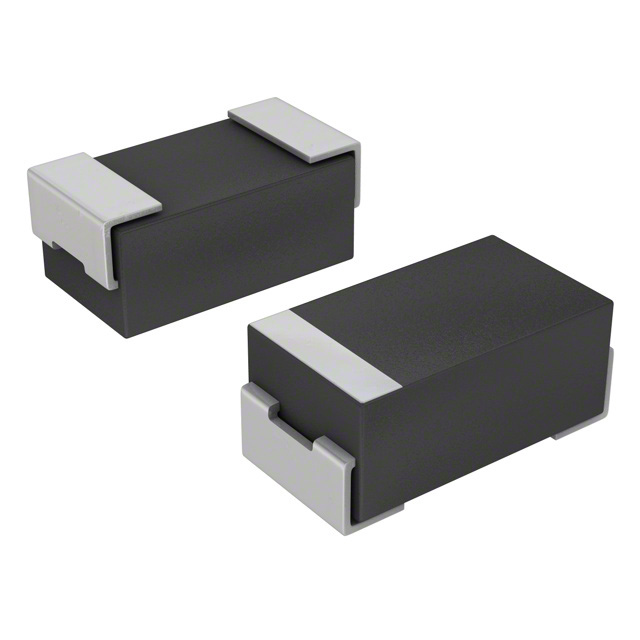

TAZ Series
15 µF Molded Tantalum Capacitors 25 V 2915 (7338 Metric) 200mOhm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | TAZH156K025CRSZ0800 |
|---|---|
| Capacitance | 15 µF |
| ESR (Equivalent Series Resistance) | 200 mOhm |
| Features | High Reliability |
| Grade | Military |
| Height - Seated (Max) | 0.125 in |
| Manufacturer Size Code | H |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2915 (7338 Metric) |
| Qualification | 11, MIL-PRF-55365 |
| Ratings | COTS |
| Size / Dimension Length | 0.285 in |
| Size / Dimension Width | 0.15 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 25 VAC |
