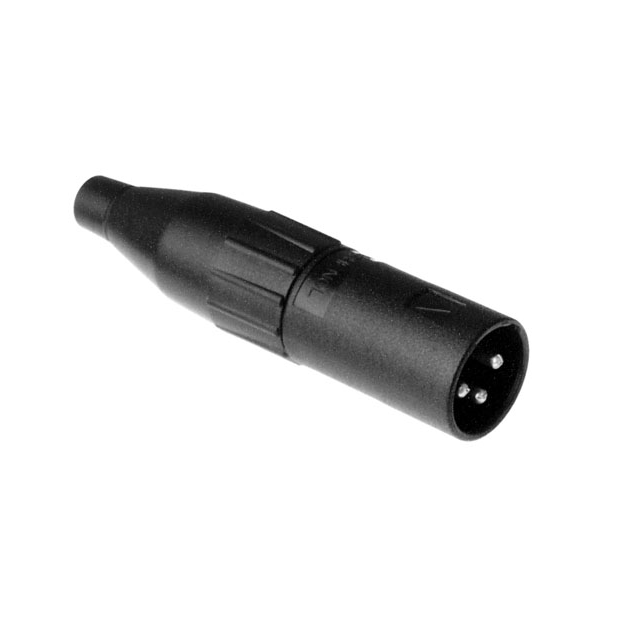

AC3MCP BULK
ActiveAmphenol Sine Systems Corp
PLASTIC PLUG STR CORD 3 PIN BULK
Deep-Dive with AI
Search across all available documentation for this part.
AC3MCP BULK
ActiveAmphenol Sine Systems Corp
PLASTIC PLUG STR CORD 3 PIN BULK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AC3MCP BULK | AC3M Series |
|---|---|---|
| - | - | |
| Applications | Audio | Audio |
| Backshell Material, Plating | Polyphenylene Ether (PPE) | Polyphenylene Ether (PPE) |
| Color | Black | Black, Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Silver | Gold, Silver |
| Contact Finish Thickness - Mating | - | 1.97 Áin |
| Contact Finish Thickness - Mating | - | 0.05 Ám |
| Contact Material | Phosphor Bronze | Brass, Phosphor Bronze |
| Current Rating (Amps) | 15 A | 6 - 15 A |
| Fastening Type | Latch Holder | Latch Lock, Push-Pull, Latch Holder |
| Features | Cable Clamp, Backshell | Board Guide, Ground, Cable Clamp, Backshell |
| Ingress Protection | IP40 | IP40 |
| Insert Material | - | Glass Filled, Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | - | Flange |
| Mounting Type | Free Hanging (In-Line) | Through Hole, Panel Mount, Free Hanging (In-Line), Right Angle |
| Operating Temperature [Max] | 75 ░C | 75 ░C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic, Metal |
| Shell Finish | Black | Nickel, Black |
| Shell Material | - | Zinc Die Cast |
| Shell Size - Insert | XLR | XLR |
| Shielding | Unshielded | Unshielded, Shielded |
| Termination | - | Solder |
AC3M Series
PLASTIC PANEL MOUNT VERT PCB 3 P
| Part | Color | Primary Material | Shell Size - Insert | Orientation | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Fastening Type | Contact Material | Features | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Current Rating (Amps) | Mounting Type | Applications | Connector Type | Ingress Protection | Shielding | Insert Material | Shell Finish | Shell Material | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp AC3MBV-AU-PRE | Black, Silver | Plastic | XLR | Keyed | Gold | -25 °C | 75 ░C | Flange | Latch Lock | Brass | Board Guide | UL94 V-0 | 1.97 Áin | 0.05 Ám | Solder | 6 A | Panel Mount, Through Hole | Audio | Male Pins, Receptacle | IP40 | Unshielded | Glass Filled, Nylon 6/6, Polyamide (PA66) | |||
Amphenol Sine Systems Corp AC3MMDZ BULK | Silver | Metal | XLR | Keyed | Silver | -25 °C | 75 ░C | Flange | Push-Pull | Brass | Ground | UL94 V-0 | 15 A | Audio | Male Pins, Receptacle | IP40 | Shielded | Glass Filled, Nylon 6/6, Polyamide (PA66) | Nickel | Zinc Die Cast | |||||
Amphenol Sine Systems Corp AC3MBHL-AU-PRE | |||||||||||||||||||||||||
Amphenol Sine Systems Corp AC3MBV2-AU-PRE | |||||||||||||||||||||||||
Amphenol Sine Systems Corp AC3MBV3-AU-PRE | |||||||||||||||||||||||||
Amphenol Sine Systems Corp AC3MMDZB BULK | Black | Metal | XLR | Keyed | Silver | -25 °C | 75 ░C | Flange | Push-Pull | Brass | UL94 V-0 | 15 A | Audio | Male Pins, Receptacle | IP40 | Unshielded | Glass Filled, Nylon 6/6, Polyamide (PA66) | Black | Zinc Die Cast | ||||||
Amphenol Sine Systems Corp AC3MBH1-AU-PRE | |||||||||||||||||||||||||
Amphenol Sine Systems Corp AC3MB BULK | Black | Metal | XLR | Keyed | Silver | -25 °C | 75 ░C | Latch Holder | Phosphor Bronze | Backshell, Cable Clamp | UL94 V-0 | 15 A | Free Hanging (In-Line) | Audio | Male Pins, Receptacle | IP40 | Unshielded | Black | Zinc Die Cast | Polyphenylene Ether (PPE) | |||||
Amphenol Sine Systems Corp AC3MCP BULK | Black | Plastic | XLR | Keyed | Silver | -25 °C | 75 ░C | Latch Holder | Phosphor Bronze | Backshell, Cable Clamp | UL94 V-0 | 15 A | Free Hanging (In-Line) | Audio | Male Pins, Receptacle | IP40 | Unshielded | Black | Polyphenylene Ether (PPE) | ||||||
Amphenol Sine Systems Corp AC3MMB BULK | Black | Metal | XLR | Keyed | Silver | -25 °C | 75 ░C | Latch Holder | Brass | Backshell, Cable Clamp | UL94 V-0 | 15 A | Free Hanging (In-Line) | Audio | Male Pins, Receptacle | IP40 | Unshielded | Black | Zinc Die Cast | Polyphenylene Ether (PPE) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 500 | $ 2.19 | |
Description
General part information
AC3M Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
