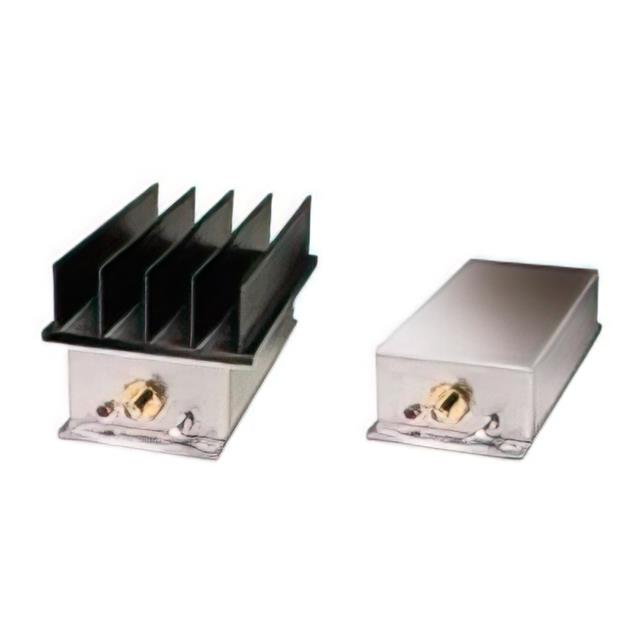

ZHL-2-8-S+
ObsoleteMini-Circuits
GAIN BLOCK, 10 - 1000 MHZ, 50
ZHL-2-8-S+
ObsoleteMini-Circuits
GAIN BLOCK, 10 - 1000 MHZ, 50
Description
General part information
ZHL-2-8-S+
RF Amplifier IC Cellular, UHF, VHF 10MHz ~ 1GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | ZHL-2-8-S+ |
|---|---|
| Current - Supply | 700 mA |
| Frequency Range 1 (Max) | 1 GHz |
| Frequency Range 1 (Min) | 10 MHz |
| Gain | 39 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 7 dB |
| P1dB | 29 dBm |
| Package / Case | Module |
| RF Type | VHF, UHF, Cellular |
| Test Frequency (Maximum) | 1 GHz |
| Test Frequency (Minimum) | 10 MHz |
| Voltage - Supply | 24 VDC |
