M128XM-MLD
ActivePasternack

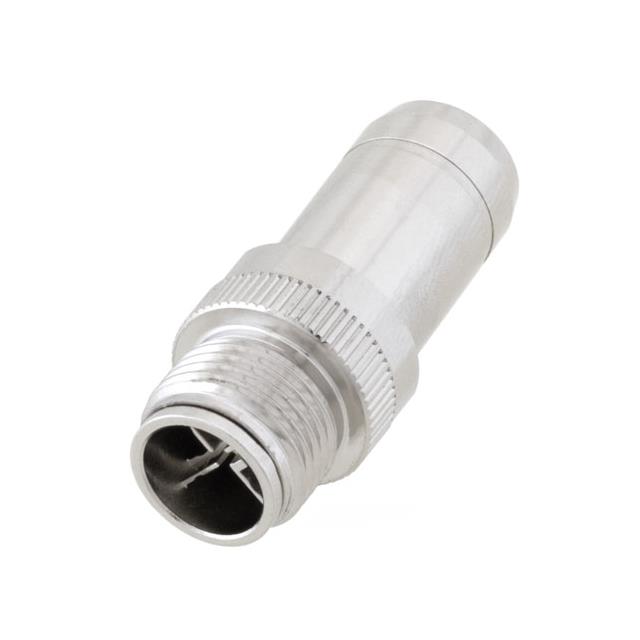

SENSOR CONNECTOR, M12, PLUG, 8 CONTACTS, SOLDER PIN, STRAIGHT PANEL MOUNT
M128XM-MLD
ActivePasternack
SENSOR CONNECTOR, M12, PLUG, 8 CONTACTS, SOLDER PIN, STRAIGHT PANEL MOUNT
Description
General part information
M128XM-MLD
8 Position Circular Connector Plug, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | M128XM-MLD |
|---|---|
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15 µin |
| Contact Material | Phosphor Bronze |
| Current Rating | 0.5 A |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | X |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-8 |
| Shielding | Shielded |
| Termination | Solder Cup |
| Voltage Rating | 48 V |
| Voltage Rating (Type) | DC |
