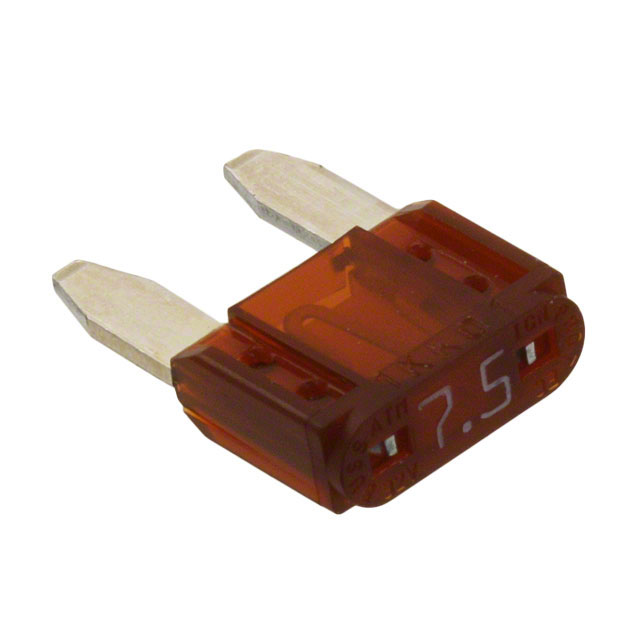

BK/ATM-7-1/2
ActiveEaton - Electronics Division
FUSE, AUTOMOTIVE, FAST ACTING, 7.5 A, 32 V, 10.9MM X 3.8MM X 8.8MM, ATM SERIES
BK/ATM-7-1/2
ActiveEaton - Electronics Division
FUSE, AUTOMOTIVE, FAST ACTING, 7.5 A, 32 V, 10.9MM X 3.8MM X 8.8MM, ATM SERIES
Description
General part information
BK/ATM-7-1/2
7.5 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature
Technical Specifications
Parameters and characteristics for this part
| Specification | BK/ATM-7-1/2 |
|---|---|
| Breaking Capacity | 1 kA |
| Color | Brown |
| Current Rating | 7.5 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Package / Case | Blade, Miniature |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.347 in |
| Size / Dimension Length | 0.43 in |
| Size / Dimension Width | 0.15 in |
| Voltage Rating - DC | 32 V |
