1-1337604-0
ActiveTE Connectivity AMP Connectors

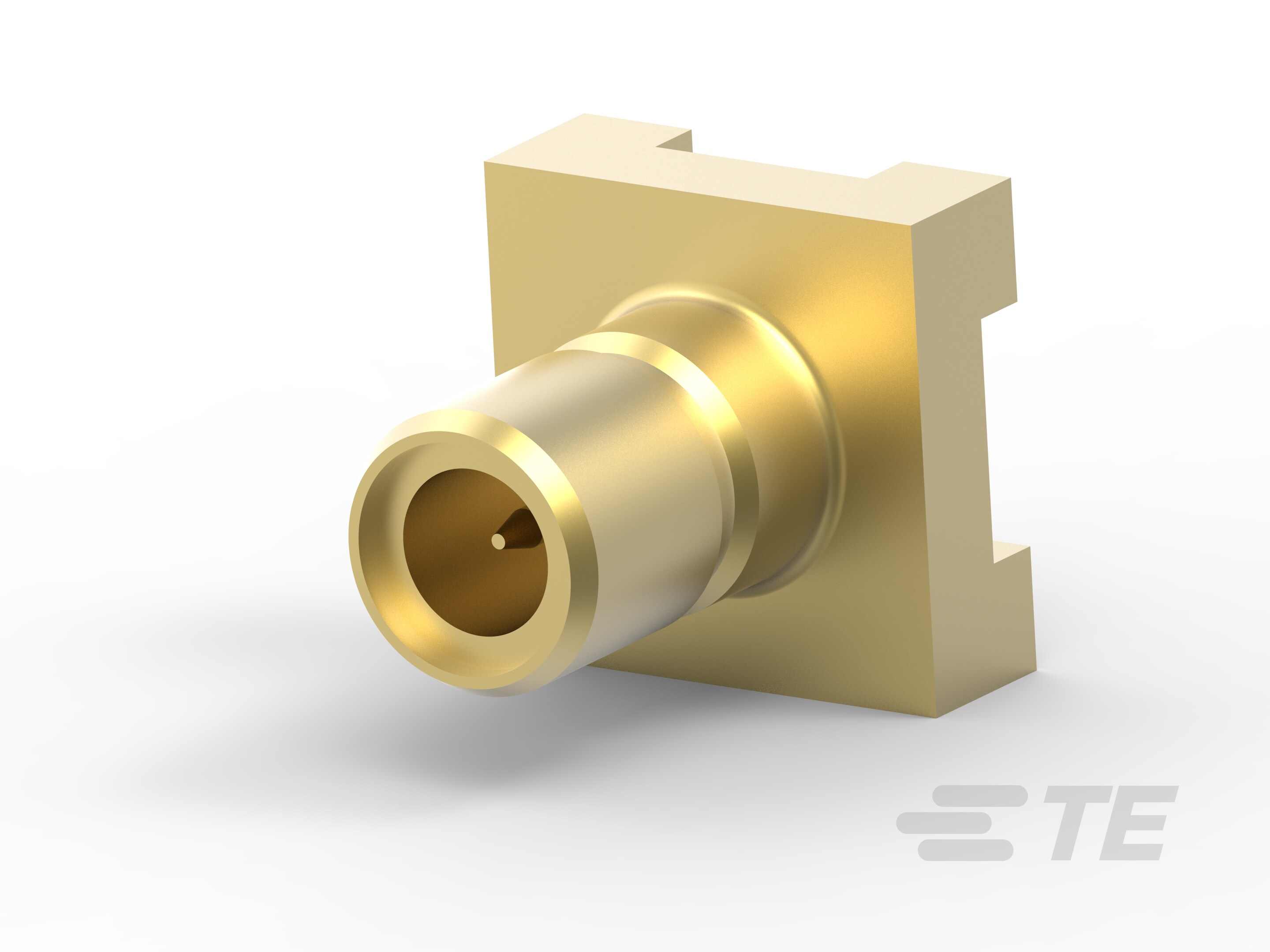

CONN SMB JACK STR 50 OHM SMD
1-1337604-0
ActiveTE Connectivity AMP Connectors
CONN SMB JACK STR 50 OHM SMD
Description
General part information
1-1337604-0
SMB Connector, Jack, 50 ohm, Snap-Fit, 4 GHz, Cable-to-Cable, 1 Position, Printed Circuit Board, Board Mount, -65 – 165 °C [-85 – 329 °F], Brass, Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1337604-0 |
|---|---|
| Center Contact Material | Brass |
| Connector Style | SMB |
| Connector Type | Jack, Male Pin |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Frequency - Max | 4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Shield Termination | Solder |
