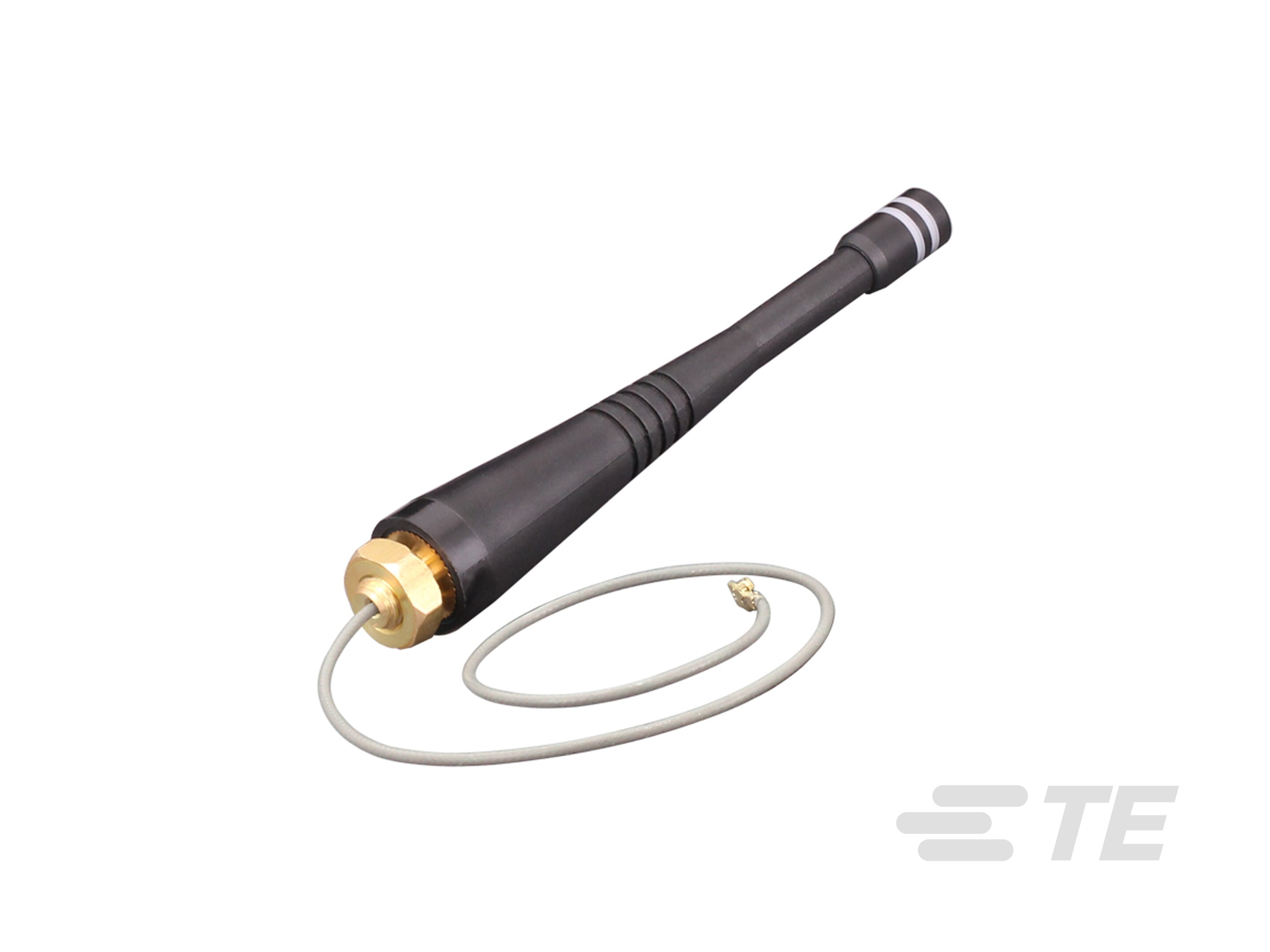

Specification	ANT-868-PW-QW-UFL

Antenna Type	Straight, Whip
Applications	Sensor Networks, LoRa, Sigfox, ISM
Features	Cable, 216mm
Frequency (Center/Band)	868 MHz
Frequency Group	UHF
Frequency Group Maximum (UHF)	1 GHz
Frequency Group Minimum (UHF)	300 MHz
Frequency Range (Max)	950 MHz
Frequency Range (Min)	750 MHz
Gain	1.6 dBi
Height (Max)	3.307 in
Mounting Type	Panel Mount
Number of Bands	1
RF Family/Standard	General ISM
Termination	IPEX MHF1, U.FL (UMCC)
Termination Type	U.FL, I-PEX MHF1
VSWR	1.9

ANT-868 Series

Part	Gain	Applications	Antenna Type	Frequency (Center/Band)	RF Family/Standard	Height (Max)	Number of Bands	Frequency Range (Min)	Frequency Range (Max)	Termination Type	Frequency Group Maximum (UHF)	Frequency Group	Frequency Group Minimum (UHF)	Mounting Type	VSWR	Ingress Protection	Features	Termination	Frequency (Band)	Frequency (Center)	Power - Max	Return Loss
TE Connectivity AMP Connectors ANT-868-CW-HWR-RPS	-2.3 dBi	ISM LoRa Sensor Networks Sigfox	Tilt Whip	868 MHz	General ISM	5.591 in	1	853 MHz	883 MHz	RP-SMA Male	1 GHz	UHF	300 MHz	Connector Mount	2
TE Connectivity AMP Connectors ANT-868-ID-2000-SMA	0.6 dBi	ISM LoRa Sensor Networks Sigfox	Straight Whip	868 MHz	General ISM	4.906 in	1	848 MHz	898 MHz	SMA Male	1 GHz	UHF	300 MHz	Bracket Mount	1.9	IP67	2m Cable
TE Connectivity AMP Connectors ANT-868-SP	1.1 dBi	ISM LoRa Sensor Networks Sigfox	Chip	868 MHz	General ISM	0.059 in	1	850 MHz	885 MHz		1 GHz	UHF	300 MHz	Surface Mount	1.9			Solder
TE Connectivity AMP Connectors ANT-868-WRT-SMA	1.5 dBi	ISM LoRa Sensor Networks Sigfox	Dome		General ISM	0.433 in	1	855 MHz	880 MHz	SMA Male	1 GHz	UHF	300 MHz	Panel Mount	1.9		216mm Cable		850 MHz	800 MHz
TE Connectivity AMP Connectors ANT-868-CHP-T	0.5 dBi	ISM LoRa Sensor Networks Sigfox	Chip	868 MHz	General ISM	0.067 in	1	863 MHz	873 MHz		1 GHz	UHF	300 MHz	Surface Mount	2			Solder			3 VA
TE Connectivity AMP Connectors ANT-868-CW-HD-SMA	-0.3 dBi	ISM LoRa Sensor Networks Sigfox	Straight Whip	868 MHz	General ISM	2.953 in	1	820 MHz	900 MHz	SMA Male	1 GHz	UHF	300 MHz	Connector Mount	2
TE Connectivity AMP Connectors ANT-868-PW-RA	4 dBi	ISM LoRa Sensor Networks Sigfox	Tilt Whip	868 MHz	General ISM	3.898 in	1	780 MHz	960 MHz		1 GHz	UHF	300 MHz	Panel Mount	1.9			Screw-Mount
TE Connectivity AMP Connectors ANT-868-CW-RAH-SMA	0.6 dBi	ISM LoRa Sensor Networks Sigfox	Right Angle Whip	868 MHz	General ISM	1.85 in	1	833 MHz	903 MHz	SMA Male	1 GHz	UHF	300 MHz	Connector Mount	1.9
TE Connectivity AMP Connectors ANT-868-OC-LG-RPS	0.4 dBi	ISM LPWA	Tilt Whip	868 MHz	General ISM	7.62 in	1	862 MHz	876 MHz		1 GHz	UHF	300 MHz	Connector Mount	2.3			RP-SMA Female			10 VA	8.1 dB
TE Connectivity AMP Connectors ANT-868-PML-UFL	-2 dBi	ISM LoRa Sensor Networks Sigfox	Tilt Whip	868 MHz	General ISM	5.917 in	1	853 MHz	883 MHz	I-PEX MHF1 U.FL	1 GHz	UHF	300 MHz	Panel Mount	1.9		305mm Cable	IPEX MHF1 U.FL (UMCC)
