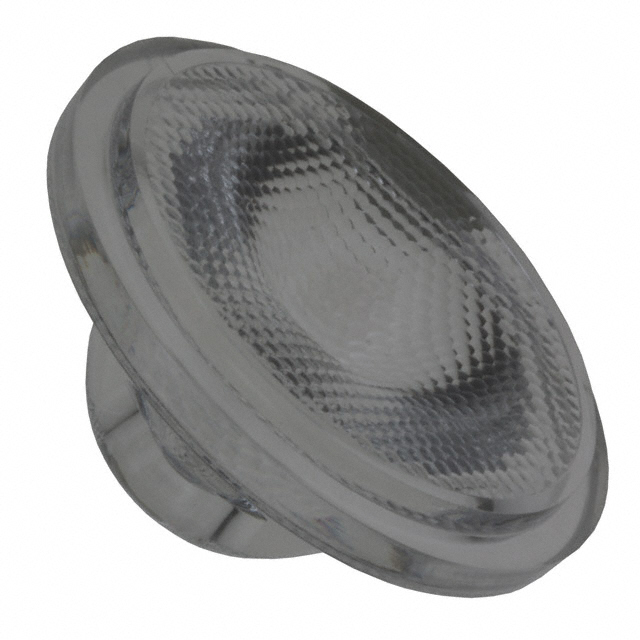

C10686_EVA-W

Active

LEDIL

LENS FROM MATERIAL OPTICAL GRADE PC WITH HIGH UV AND TEMPERATURE RESISTANCE

Search across all available documentation for this part.

Active

LEDIL

LENS FROM MATERIAL OPTICAL GRADE PC WITH HIGH UV AND TEMPERATURE RESISTANCE

Technical Specifications

Parameters and characteristics for this part

Specification	C10686_EVA-W

Color	Clear
For Use With/Related Manufacturer	Osram, Cree, Lumileds, Seoul, Nichia
Lens Size [diameter]	35 mm
Lens Transparency	Diffused
Material	Acrylic
Number of LEDs	1
Optical Pattern	Wide
Type	Lens with Integrated Mount
Viewing Angle [Max]	57 °
Viewing Angle [Min]	29 °

LENS FROM MATERIAL OPTICAL GRADE PC WITH HIGH UV AND TEMPERATURE RESISTANCE

Part	Material	Type	Color	Optical Pattern	Number of LEDs	Lens Transparency	For Use With/Related Manufacturer	Lens Size [diameter]	Viewing Angle [Min]	Viewing Angle [Max]
LEDIL C10686_EVA-W	Acrylic	Lens with Integrated Mount	Clear	Wide	1	Diffused	Cree, Lumileds, Nichia, Osram, Seoul	35 mm	29 °	57 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens with Integrated Mount Clear 29° ~ 57° Wide
