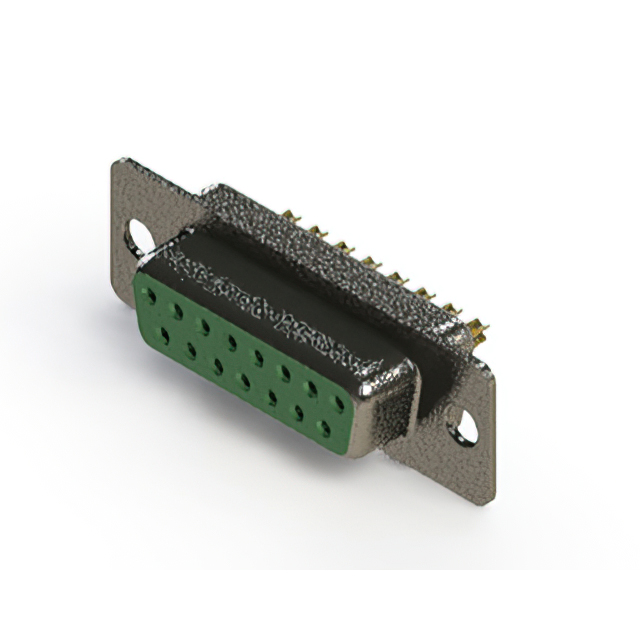

628-M15-222-GN1

Active

EDAC Inc.

628M SERIES VERTICAL D-SUB RECEP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-M15-222-GN1

Active

EDAC Inc.

628M SERIES VERTICAL D-SUB RECEP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-M15-222-GN1

Color	Green
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2

628-M15 Series

...

Part	Flange Feature	Shell Size, Connector Layout	Dielectric Material	Contact Type	Number of Rows	Features	Contact Finish	Contact Material	Connector Type	Termination	Material Flammability Rating	Number of Positions	Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Shell Material, Finish	Contact Finish Thickness
EDAC Inc. 628-M15-323-WN6	4-40	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Board Lock Shielded	Gold	Copper Alloy	Receptacle Female Sockets	Solder	UL94 V-0	15	White	-55 °C	125 °C	D-Sub	5 A	15 µin	0.38 µm	Through Hole	Nickel Plated Steel
EDAC Inc. 628-M15-321-LT4	4-40	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Board Lock Shielded	Gold	Copper Alloy	Receptacle Female Sockets	Solder	UL94 V-0	15	Blue	-55 °C	125 °C	D-Sub	5 A	15 µin	0.38 µm	Through Hole
EDAC Inc. 628-M15-323-LT4	4-40	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Board Lock Shielded	Gold	Copper Alloy	Receptacle Female Sockets	Solder	UL94 V-0	15	Blue	-55 °C	125 °C	D-Sub	5 A	15 µin	0.38 µm	Through Hole
EDAC Inc. 628-M15-323-LN3	4-40 Board Side	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Shielded	Gold	Copper Alloy	Receptacle Female Sockets	Solder	UL94 V-0	15	Blue	-55 °C	125 °C	D-Sub	5 A	15 µin	0.38 µm	Through Hole	Nickel Plated Steel
EDAC Inc. 628-M15-223-LN6	4-40	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Board Lock Shielded	Gold	Copper Alloy	Receptacle Female Sockets	Solder	UL94 V-0	15	Blue	-55 °C	125 °C	D-Sub	5 A			Through Hole	Nickel Plated Steel	Flash
EDAC Inc. 628-M15-223-WN4	4-40	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Board Lock Shielded	Gold	Copper Alloy	Receptacle Female Sockets	Solder	UL94 V-0	15	White	-55 °C	125 °C	D-Sub	5 A			Through Hole	Nickel Plated Steel	Flash
EDAC Inc. 628-M15-623-GN2	Housing/Shell (4-40)	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Shielded	Gold	Copper Alloy	Receptacle Female Sockets	Solder	UL94 V-0	15	Green	-55 °C	125 °C	D-Sub	5 A	30 Áin	0.76 Ám	Through Hole	Nickel Plated Steel
EDAC Inc. 628-M15-222-GN1	Housing/Shell (Unthreaded)	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Shielded	Gold	Copper Alloy	Receptacle Female Sockets		UL94 V-0	15	Green	-55 °C	125 °C	D-Sub	5 A			Free Hanging (In-Line)	Nickel Plated Steel	Flash
EDAC Inc. 628-M15-221-WT6	4-40	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Board Lock Shielded	Gold	Copper Alloy	Receptacle Female Sockets	Solder	UL94 V-0	15	White	-55 °C	125 °C	D-Sub	5 A			Through Hole		Flash
EDAC Inc. 628-M15-222-LN1	Housing/Shell (Unthreaded)	2	Polyamide (PA6T) Nylon 6T	Signal and Power	2	Shielded	Gold	Copper Alloy	Receptacle Female Sockets		UL94 V-0	15	Blue	-55 °C	125 °C	D-Sub	5 A			Free Hanging (In-Line)	Nickel Plated Steel	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 4.07

Description

General part information

628-M15 Series

15 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources
