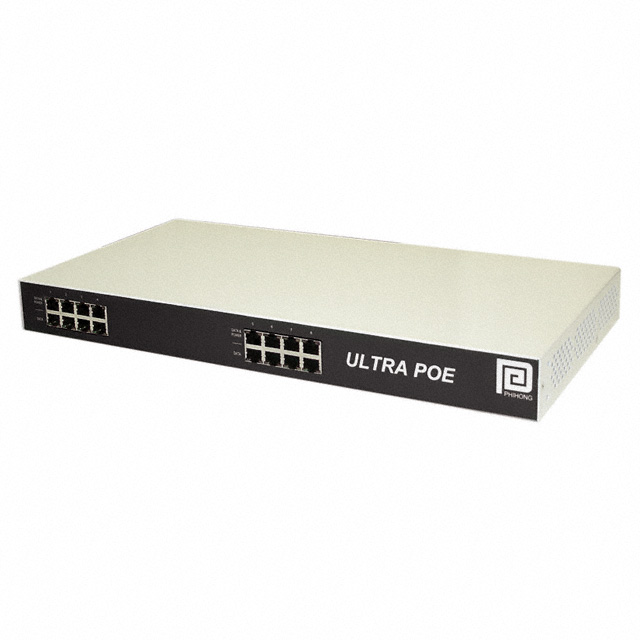

POE480U-8UP
ObsoletePhihong USA
POE INJECTOR 60W RACK
POE480U-8UP
ObsoletePhihong USA
POE INJECTOR 60W RACK
Description
General part information
POE480U-8UP
Power Over Ethernet (POE) 8 Port Midspan Injector 10/100/1000 Mbps Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | POE480U-8UP |
|---|---|
| Approval Agency | cULus, CE |
| Efficiency | 75 % |
| Features | OCP, SCP, OTP, OVP |
| Input Connector | IEC 320-C14 |
| Maximum Data Rate | 1000 Mbps |
| Minimum Data Rate | 10 Mbps |
| Mounting Type | Rack Mount |
| Note | AC Power Cord Sold Separately |
| Number of Ports | 8 |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Power), RJ45 (Data |
| Power (Watts) - Per Port | 60 W |
| Size / Dimension Height | 1.73 in |
| Size / Dimension Length | 17.26 in |
| Size / Dimension Width | 8.94 in |
| Type | Midspan Injector |
| Typical Data Rate | 100 Mbps |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Weight | 2.5 lbs |
