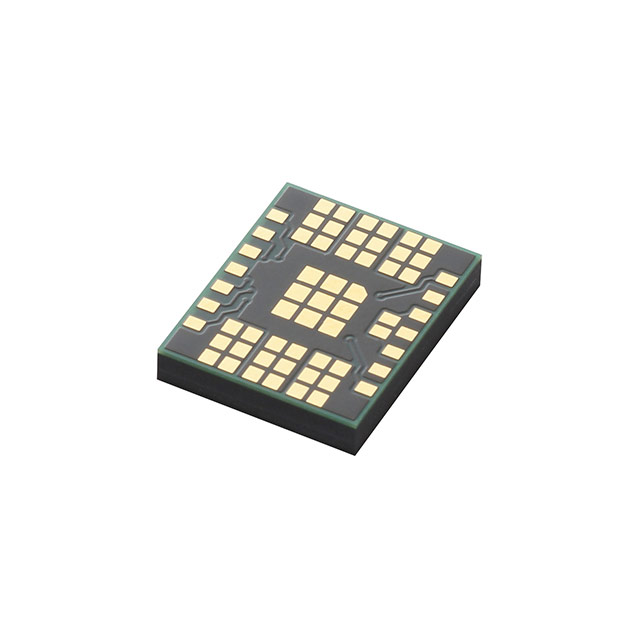

MYMGC3R32EFPF2RVD

Active

Murata Power Solutions Inc.

NON ISOLATED POL DC/DC CONVERTER, ITE & INDUSTRIAL, STEP DOWN, MODULE, 4 OUTPUT, 6.6 W, 3.3 V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

NON ISOLATED POL DC/DC CONVERTER, ITE & INDUSTRIAL, STEP DOWN, MODULE, 4 OUTPUT, 6.6 W, 3.3 V

Technical Specifications

Parameters and characteristics for this part

Non-Isolated DC/DC Converters 6.45W 3.3-5.5VIN, QUAD OUTPUT

Part	Voltage - Input (Min) [Min]	Voltage - Output 2	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Number of Outputs	Voltage - Output 3	Power (Watts)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Package / Case	Voltage - Output 1	Voltage - Output 4	Current - Output (Max)	Type	Control Features	Applications	Features
Murata Power Solutions Inc. MYMGC3R32EFPF2RVD	4.3 V	1.8 V	2.4 mm	0.47 "	15 mm	11.9 mm	0.59 in	0.09 "	91 %	4	3.3 V	15 W	Surface Mount	85 °C	-40 °C	5.5 V	61-LGA Module	1.2 V	2.5 V	1 A, 1.5 A, 2 A, 2.5 A	Non-Isolated PoL Module	Active High, Enable	ITE (Commercial)	Remote On/Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 11.31
	Digi-Reel®	1	$ 11.31
	Tape & Reel (TR)	100	$ 10.78
Newark	Each (Supplied on Cut Tape)	100	$ 12.76
		250	$ 11.85
		500	$ 11.07

General part information

Non-Isolated DC/DC Converters 6.45W 3.3-5.5VIN, QUAD OUTPUT
