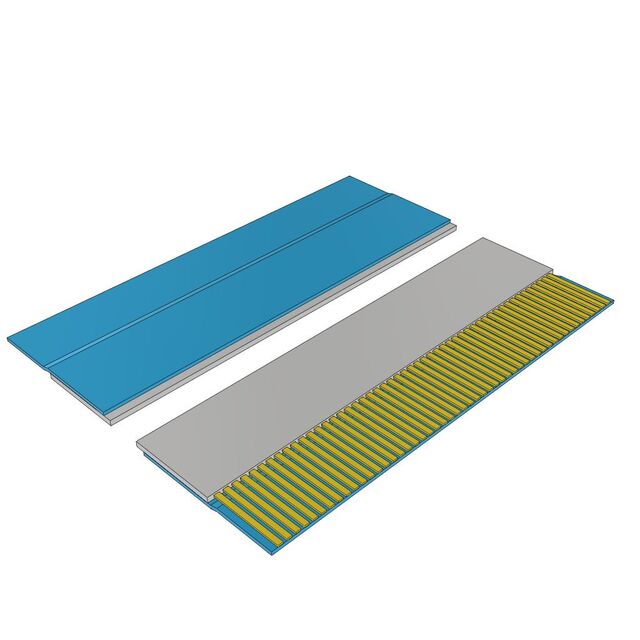

FJH-50-R-24.00-4

Active

Samtec Inc.

CABLE FFC/FPC 50POS 0.5MM 24"

Search across all available documentation for this part.

Active

Samtec Inc.

CABLE FFC/FPC 50POS 0.5MM 24"

Technical Specifications

Parameters and characteristics for this part

Specification	FJH-50-R-24.00-4

Cable Type	FPC, FFC
Length - Exposed Ends [x]	4 mm
Length - Exposed Ends [x]	0.157 in
Length [x]	609.6 mm
Length [x]	24 in
Number of Conductors	50
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Top on One Side, Bottom on Other, Backers on Both Sides

FFC / FPC Jumper Cables Flat Flexible Cable Jumper, 0.50 mm Pitch

...

Part	Number of Conductors	Pitch [x]	Pitch [x]	Cable Type	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Termination Style	Length [x]	Length [x]	Length	Length
Samtec Inc. FJH-30-D-15.74-4	30	0.5 mm	0.02 in	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	398.8 mm	15.7 in
Samtec Inc. FJH-50-D-02.50-4	50	0.5 mm	0.02 in	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	63.5 mm	2.5 in
Samtec Inc. FJH-50-R-24.00-4	50	0.5 mm	0.02 in	FFC FPC	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	609.6 mm	24 in
Samtec Inc. FJH-24-D-23.50-4	24	0.5 mm	0.02 in	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides
Samtec Inc. FJH-30-R-10.25-4	30	0.5 mm	0.02 in	FFC FPC	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides			10.2 in	259.1 mm
Samtec Inc. FJH-15-R-05.16-4	15	0.5 mm	0.02 in	FFC FPC	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides
Samtec Inc. FJH-50-D-06.30-4	50	0.5 mm	0.02 in	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	160.02 mm	6.3 "
Samtec Inc. FJH-30-D-65.00-4	30	0.5 mm	0.02 in	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides
Samtec Inc. FJH-25-D-03.50-4	25	0.5 mm	0.02 in	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	88.9 mm	3.5 in
Samtec Inc. FJH-30-D-13.00-4	30	0.5 mm	0.02 in	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides			13 in	330.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

FFC / FPC Jumper Cables Flat Flexible Cable Jumper, 0.50 mm Pitch
