FJH-15-R-05.50-4

Active

Samtec Inc.

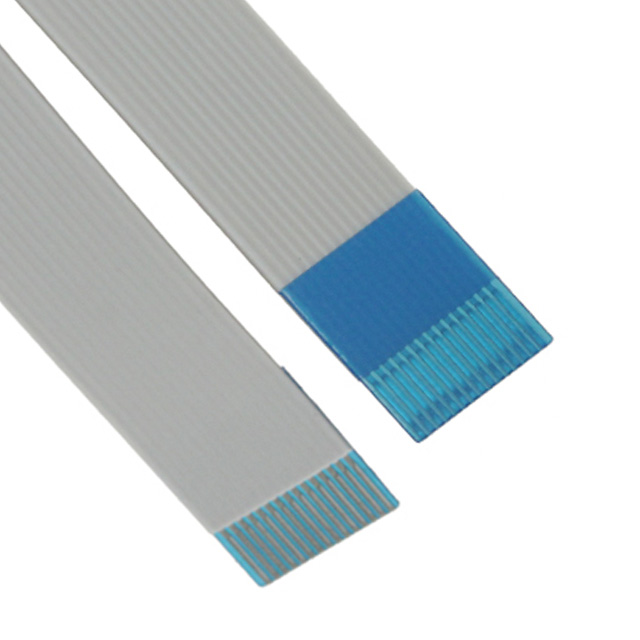

CABLE FFC/FPC 15POS 0.5MM 5.5"

Search across all available documentation for this part.

Active

Samtec Inc.

CABLE FFC/FPC 15POS 0.5MM 5.5"

Technical Specifications

Parameters and characteristics for this part

Specification	FJH-15-R-05.50-4

Cable Type	FPC, FFC
Length - Exposed Ends [x]	4 mm
Length - Exposed Ends [x]	0.157 in
Length [x]	5.5 in
Length [x]	139.7 mm
Number of Conductors	15
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Top on One Side, Bottom on Other, Backers on Both Sides

Part	Pitch [x]	Pitch [x]	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Cable Type	Length	Length	Termination Style	Number of Conductors	Length [x]	Length [x]
Samtec Inc. FJH-15-D-06.00-4	0.5 mm	0.02 in	4 mm	0.157 in	FFC FPC	152.4 mm	6 in	Backers on Both Sides Top on Both Sides	15
Samtec Inc. FJH-15-D-36.00-4	0.5 mm	0.02 in	4 mm	0.157 in	FFC FPC	91.44 cm	36 in	Backers on Both Sides Top on Both Sides	15
Samtec Inc. FJH-15-R-08.00-4	0.5 mm	0.02 in	4 mm	0.157 in	FFC FPC	203.2 mm	8 in	Top on One Side Bottom on Other Backers on Both Sides	15
Samtec Inc. FJH-15-R-05.50-4	0.5 mm	0.02 in	4 mm	0.157 in	FFC FPC			Top on One Side Bottom on Other Backers on Both Sides	15	5.5 in	139.7 mm
Samtec Inc. FJH-15-D-10.00-4	0.5 mm	0.02 in	4 mm	0.157 in	FFC FPC	254 mm		Backers on Both Sides Top on Both Sides	15	10 in
Samtec Inc. FJH-15-R-05.16-4	0.5 mm	0.02 in	4 mm	0.157 in	FFC FPC			Top on One Side Bottom on Other Backers on Both Sides	15
Samtec Inc. FJH-15-D-08.66-4	0.5 mm	0.02 in	4 mm	0.157 in	FFC FPC	219.96 mm	8.66 in	Backers on Both Sides Top on Both Sides	15
Samtec Inc. FJH-15-R-04.50-4	0.5 mm	0.02 in	4 mm	0.157 in	FFC FPC	114.3 mm	4.5 in	Top on One Side Bottom on Other Backers on Both Sides	15
Samtec Inc. FJH-15-D-03.10-4	0.5 mm	0.02 in	4 mm	0.157 in	FFC FPC	78.74 mm	3.1 in	Backers on Both Sides Top on Both Sides	15
Samtec Inc. FJH-15-D-04.95-4	0.5 mm	0.02 in	4 mm	0.157 in	FFC FPC	125.73 mm	4.95 in	Backers on Both Sides Top on Both Sides	15

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.63

General part information

15 Position FFC, FPC Cable 0.020" (0.50mm) 5.500" (139.70mm)
