ECM-B3M-C20807SS1
ActiveDelta Electronics/Industrial Automation

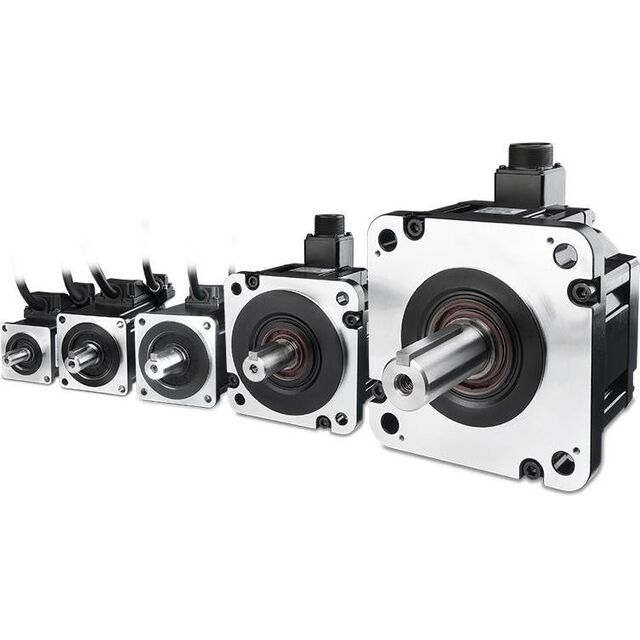

B3 AC SERVO MOTOR 750W W/BRAKE
ECM-B3M-C20807SS1
ActiveDelta Electronics/Industrial Automation
B3 AC SERVO MOTOR 750W W/BRAKE
Description
General part information
ECM-B3M-C20807SS1
Positional Rotation AC Motor Servomotor 3000 RPM 750W Incremental 220VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | ECM-B3M-C20807SS1 |
|---|---|
| Approval Agency | cURus, CE |
| Diameter - Shaft | 0.748 in |
| Encoder Type | Incremental |
| Features | Oil Seal, Key, Brake |
| Function | Servomotor |
| Length - Shaft and Bearing | 1.378 in |
| Motor Type | Positional Rotation |
| Mounting Hole Spacing | 3.543 in |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Power - Rated | 750 W |
| RPM | 3000 RPM |
| Size / Dimension Length | 3.15 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 3.15 in |
| Termination Style | Cable with Connector |
| Torque - Max Momentary (mNm) | 8400 mNm |
| Torque - Max Momentary (oz-in) | 1189.8 oz-in |
| Torque - Rated (mNm) | 2400 mNm |
| Torque - Rated (oz-in) | 339.9 oz-in |
| Type | AC Motor |
| Voltage - Rated | 220 VAC |
