83553 0021000

Active

Belden Inc.

CABLE 3COND 22AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 22AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83553 0021000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	3.76 mm
Jacket (Insulation) Diameter [diameter]	0.148 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Usage	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Jacket Color	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Shield Material	Shield Type	Cable Type	Conductor Insulation	Shield Coverage	Length [x]	Length [x]
Belden Inc. 83553 0021000	Audio Control Instrumentation	300 V	3.76 mm	0.148 in	22 AWG	0.356 mm	0.014 in	UL Style CMP	Red	Copper Tinned	200 °C	-70 °C	3	1000 ft	304.8 m	7	30 AWG	Fluorinated Ethylene-Propylene (FEP) Plenum	Aluminum Copper Tinned	Braid Foil	Multi-Conductor	Fluorinated Ethylene-Propylene (FEP)	85 % 100 %
Belden Inc. 83553 002500	Audio Control Instrumentation	300 V	3.76 mm	0.148 in	22 AWG	0.356 mm	0.014 in	UL Style CMP	Red	Copper Tinned	200 °C	-70 °C	3			7	30 AWG	Fluorinated Ethylene-Propylene (FEP) Plenum	Aluminum Copper Tinned	Braid Foil	Multi-Conductor	Fluorinated Ethylene-Propylene (FEP)	85 % 100 %	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 7.37

General part information

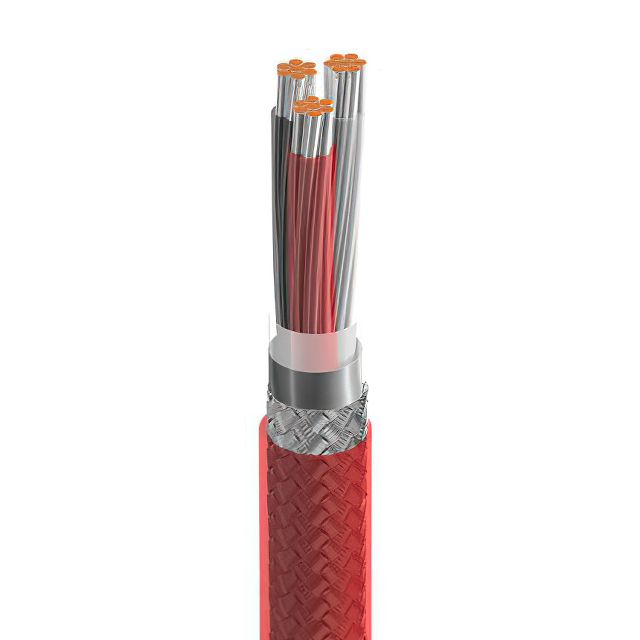

3 Conductor Multi-Conductor Cable Red 22 AWG Foil, Braid 1000.0' (304.8m)

Technical documentation and resources
