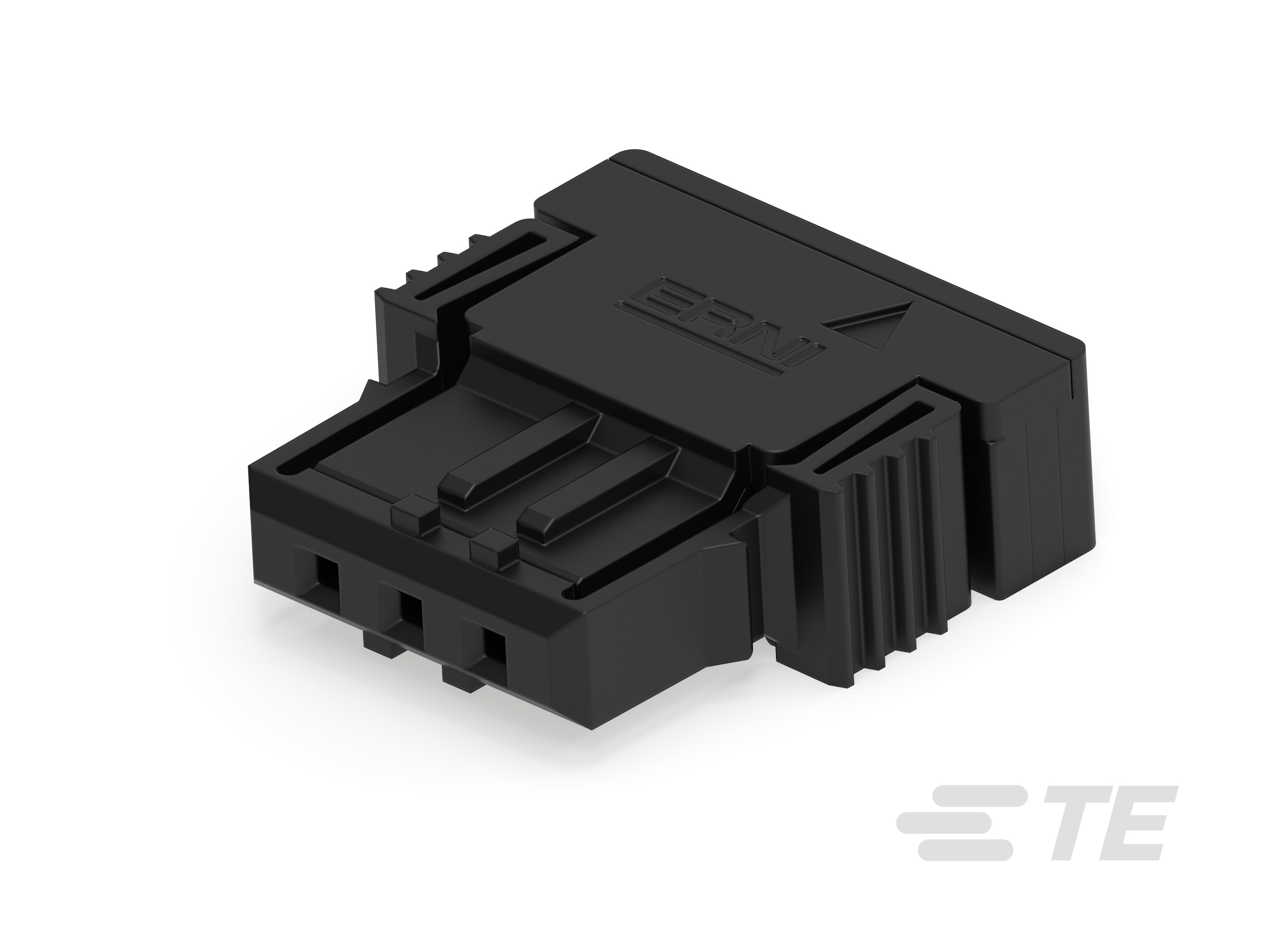

Specification	364212-E

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Number of Rows	1
Pitch	0.1 in

ERNI MaxiBridge Series

Part	Features	Number of Positions	Contact Finish - Mating	Insulation Material	Shrouding	Fastening Type	Connector Type	Row Spacing - Mating	Contact Type	Insulation Color	Pitch - Mating	Number of Rows	Contact Shape	Mounting Type	Insulation Height	Current Rating (Per Contact)	Style	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Post	Contact Length - Mating	Contact Material	Color	Contact Termination	Pitch	Voltage Rating	Current Rating	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 474016-E	Board Guide Solder Retention	10	Gold	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	Latch Holder	Header	0.1 in	Male Pin	Black	0.1 in	2	Square	Surface Mount	0.199 in	12 A	Board Cable/Wire	Solder	150 °C	-55 °C	UL94 V-0	All	Tin	0.161 in	Copper Alloy
TE Connectivity AMP Connectors 474265-E	Sealed	6		Nylon Polyamide (PA)		Latch Lock	Receptacle		Female Socket			1		Free Hanging (In-Line)					150 °C	-55 °C						Black	Crimp	0.1 in
TE Connectivity AMP Connectors 464688-E	Board Guide Solder Retention	20	Gold		Shrouded - 4 Wall	Push-Pull	Header	0.1 in	Male Pin	Green	0.1 in	2	Square	Surface Mount	0.37 in		Board	Solder	105 °C	-40 °C	UL94 V-0	All	Tin	0.161 in	Copper Alloy				500 V	11.1 A
TE Connectivity AMP Connectors 384473-E	Board Guide Solder Retention	4	Gold	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	Push-Pull	Header		Male Pin	Green	0.1 in	1	Square	Right Angle Surface Mount	0.199 in		Board Cable/Wire	Solder	150 °C	-55 °C	UL94 V-0	All	Tin	0.161 in	Copper Alloy					15 A
TE Connectivity AMP Connectors 474008-E	Board Guide Pick and Place Solder Retention	10	Gold		Shrouded - 4 Wall	Push-Pull	Header	0.1 in	Male Pin	Green	0.1 in	2	Square	Surface Mount	0.37 in		Board	Solder	105 °C	-40 °C	UL94 V-0	All	Tin	0.161 in	Copper Alloy				500 V	12.7 A
TE Connectivity AMP Connectors 234832-E	Board Guide Solder Retention	2	Gold	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	Latch Holder	Header		Male Pin	Black	0.1 in	1	Square	Right Angle Surface Mount	0.199 in	12 A	Board Cable/Wire	Solder	150 °C	-55 °C	UL94 V-0	All	Tin	0.161 in	Copper Alloy
TE Connectivity AMP Connectors 254823-E		5	Gold	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall		Header		Male Pin	Black	0.1 in	1	Square	Through Hole		12 A	Board Cable/Wire	Solder	125 °C	-55 °C	UL94 V-0	All	Gold		Phosphor Bronze
TE Connectivity AMP Connectors 484198-E	Sealed	3		Nylon Polyamide (PA)		Latch Lock	Receptacle		Female Socket			1		Free Hanging (In-Line)					150 °C	-55 °C						Black	Crimp	0.1 in
TE Connectivity AMP Connectors 284123-E	Board Guide Solder Retention	8	Gold	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	Push-Pull	Header		Male Pin	Green	0.1 in	1	Square	Right Angle Surface Mount	0.199 in		Board Cable/Wire	Solder	150 °C	-55 °C	UL94 V-0	All	Tin	0.161 in	Copper Alloy					13 A
TE Connectivity AMP Connectors 515253-E	Solder Retention	10	Gold	Liquid Crystal Polymer (LCP)	Shrouded - 4 Wall	Push-Pull	Header		Male Pin	Black	0.1 in	1	Square	Right Angle Surface Mount			Board Cable/Wire	Solder	150 °C	-55 °C	UL94 V-0	All	Tin		Copper Alloy					12 A	157.5 Ąin
