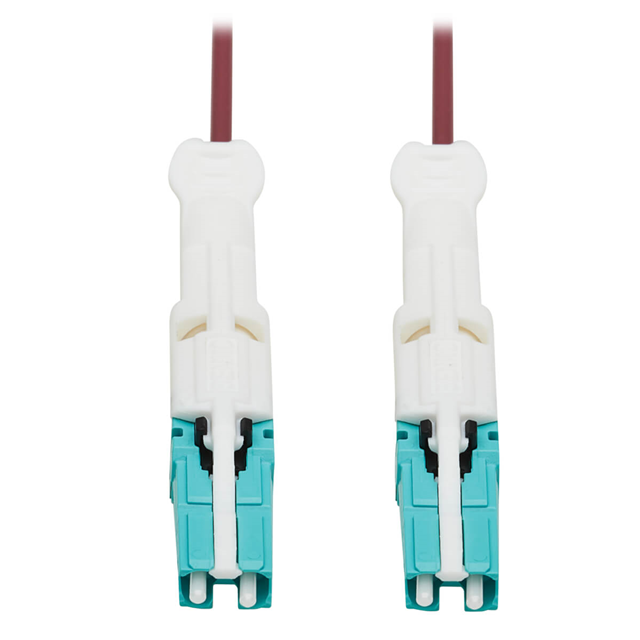

N822C-10M-MG
ActiveEaton Tripp Lite
FIB OPT CBL CS-CS DUPLX MULT 10M
N822C-10M-MG
ActiveEaton Tripp Lite
FIB OPT CBL CS-CS DUPLX MULT 10M
Description
General part information
N822C-10M-MG
Cable Fiber Optic CS Duplex To CS Duplex 50/125 32.8' (10.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | N822C-10M-MG |
|---|---|
| 1st Connector | CS Duplex |
| 2nd Connector | CS Duplex |
| Bend Radius | 10 mm |
| Color - Cable | Magenta |
| Color - Connectors | Aqua |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Insertion Loss | 0.2 dB |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 32.8 ft |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | LSZH |
| Type | Duplex, OM4, Multimode |
