RG223-NF-SM(QTY:3m)
ActiveMcGill Microwave Systems
RG223 ASSY N FEMALE-SMA MALE 3M
RG223-NF-SM(QTY:3m)
ActiveMcGill Microwave Systems
RG223 ASSY N FEMALE-SMA MALE 3M
Description
General part information
RG223-NF-SM(QTY:3m)

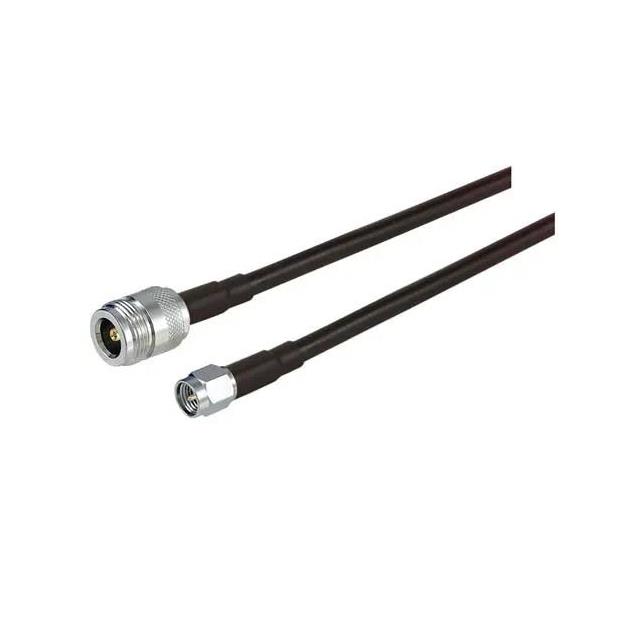

Cable Assembly Coaxial N-Type to SMA RG-223 118.1" (3.0m) 9.8'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG223-NF-SM(QTY:3m) |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Length | 118.1 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Style | SMA, N-Type |
