ZB5AK1333
ActiveSWITCH ACTUATOR, SCHNEIDER XB5 SERIES PUSHBUTTON SWITCHES, ZB4 SERIES
ZB5AK1333
ActiveSWITCH ACTUATOR, SCHNEIDER XB5 SERIES PUSHBUTTON SWITCHES, ZB4 SERIES
Description
General part information
ZB5 Series

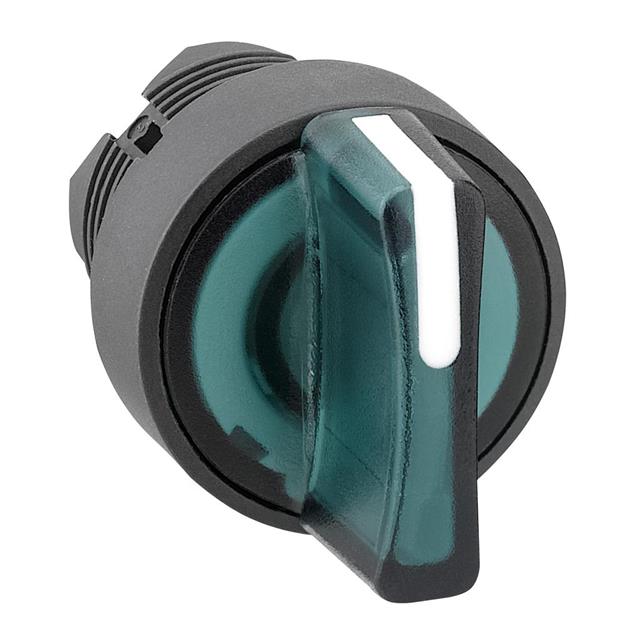

The ZB5AK1333 is an illuminated Selector Switch Head with plastic bezel and 3 position ±45° stay put green standard handle operator. This ZB5 series signaling unit round head is suitable for use with the Harmony XB5 range products. It is compatible with integral LED products. It meets the EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C 4520, UL 508 and CSA C22.2 No 14 standards.
Technical Specifications
Parameters and characteristics for this part
| Specification | ZB5AK1333 |
|---|---|
| Actuator Type | Selector |
| Compatible Series | Harmony XB5, Schneider |
| Illumination | Illuminated |
| Panel Cutout Dimension | 22 mm |
| Panel Cutout Shape | Round |
| Requires | Illumination Source, Contact Block(s) |
| Type | Maintained |
