B58600H8000A004
ActiveEPCOS - TDK Electronics
SENSOR 580.15PSIA .095V
B58600H8000A004
ActiveEPCOS - TDK Electronics
SENSOR 580.15PSIA .095V
Description
General part information
B58600H8000A004

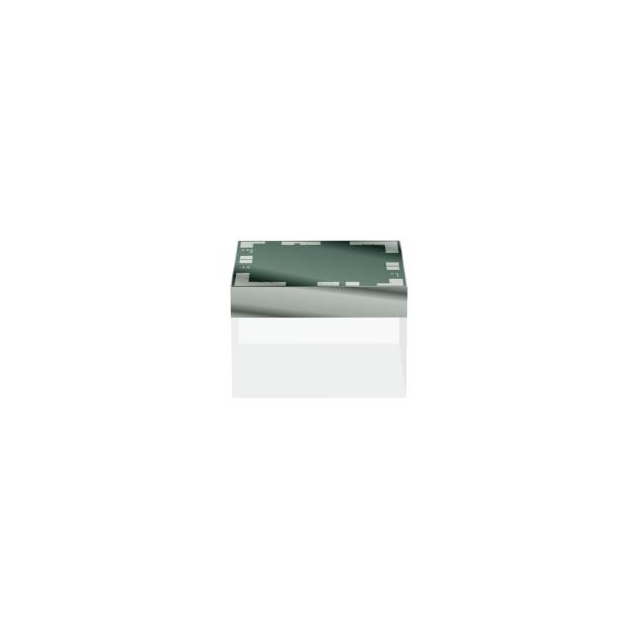

Pressure Sensor 580.15PSI (4000kPa) Absolute 6 mV ~ 95 mV (5V) Die
Technical Specifications
Parameters and characteristics for this part
| Specification | B58600H8000A004 |
|---|---|
| Applications | Board Mount |
| Maximum Pressure | 36.26 PSI |
| Operating Pressure | 580.15 PSI |
| Operating Temperature (Max) | 135 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Wheatstone Bridge |
| Output Voltage (Max) | 95 mV |
| Output Voltage (Min) | 6 mV |
| Package / Case | Die |
| Port Style | No Port |
| Pressure Type | Absolute |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply (Maximum) | 5 V |
| Voltage - Supply (Minimum) | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
