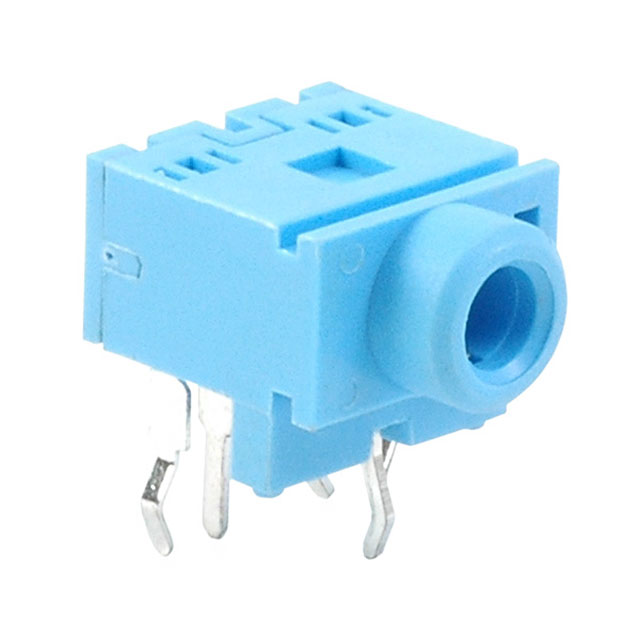

Specification	SJ1-3555NG-BE

Actual Diameter	0.142 in
Body Color	Blue
Connector Type	Phone Jack
Contact Material	Brass, Copper Alloy
Contact Material - Plating	Tin
Current Rating	1 A
Gender	Female
Housing Material	PBT, Polybutylene Terephthalate
Industry Recognized Mating Diameter (Headphone - Mini Plug)	3.5 mm
Industry Recognized Mating Diameter (Headphone Options)	Mini Plug
Internal Switch Count	2 count
Mating Length/Depth	0.551 in
Mounting Type	Through Hole, Right Angle
Number of Conductors	3 Conductors
Number of Contacts	5 Contacts
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Shielding	Unshielded
Signal Lines	3 Conductor, TRS, Stereo
Termination	Kinked Pin
Voltage - Rated	12 VAC

SJ1-35 Series

Part	Features	Internal Switch(s)	Signal Lines	Industry Recognized Mating Diameter (Headphone - Mini Plug)	Industry Recognized Mating Diameter (Headphone Options)	Gender	Termination	Connector Type	Number of Contacts	Number of Conductors	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Actual Diameter	Housing Material	Mating Length/Depth	Contact Material	Contact Material - Plating	Body Color	Body Material	Voltage - Rated	Current Rating	Internal Switch Count	Thread Size	Includes Total Count	Includes	Panel Hole Size
Same Sky (Formerly CUI Devices) SJ1-3513-SMT-TR	Board Guide	Does Not Contain Switch	3 Conductor Stereo TRS	3.5 mm	Mini Plug	Female	Solder	Phone Jack	3 Contacts	3 Conductors	Right Angle Surface Mount	85 °C	-25 °C	Unshielded	0.142 in
Same Sky (Formerly CUI Devices) SJ1-3534NS	Board Lock	Single Switch	3 Conductor Stereo TRS	3.5 mm	Mini Plug	Female	Solder	Phone Jack	4 Contacts	3 Conductors	Right Angle Through Hole	85 °C	-25 °C	Shielded	0.142 in	PBT Polybutylene Terephthalate	0.551 in	Brass	Tin	Silver	Brass	16 V	0.3 A
Same Sky (Formerly CUI Devices) SJ1-3554NG		Single Switch	3 Conductor Stereo TRS	3.5 mm	Mini Plug	Female	Kinked Pin	Phone Jack	4 Contacts	3 Conductors	Right Angle Through Hole	85 °C	-25 °C	Unshielded	0.142 in	PBT Polybutylene Terephthalate	0.551 in	Brass Copper Alloy	Tin	Black		12 VAC	1 A
Same Sky (Formerly CUI Devices) SJ1-3515	Mounting Hardware Thread Lock		3 Conductor Stereo TRS	3.5 mm	Mini Plug	Female	Solder Eyelet(s)	Phone Jack	5 Contacts	3 Conductors	Panel Mount Right Angle Through Hole	85 °C	-25 °C	Unshielded	0.142 in	PBT Polybutylene Terephthalate	0.551 in	Brass	Tin	Black Silver	Brass	12 VAC	1 A	2 count	M6	2 pcs	Connector Nut	0.236 in
Same Sky (Formerly CUI Devices) SJ1-3515N			3 Conductor Stereo TRS	3.5 mm	Mini Plug	Female	Solder Eyelet(s)	Phone Jack	5 Contacts	3 Conductors	Right Angle Through Hole	85 °C	-25 °C	Unshielded	0.142 in	PBT Polybutylene Terephthalate	0.551 in	Brass	Tin	Black Silver	Brass	12 VAC	1 A	2 count
Same Sky (Formerly CUI Devices) SJ1-3523N		Does Not Contain Switch	3 Conductor Stereo TRS	3.5 mm	Mini Plug	Female	Solder	Phone Jack	3 Contacts	3 Conductors	Right Angle Through Hole			Unshielded	0.142 in	PBT Polybutylene Terephthalate	0.551 in			Black Silver	Brass	12 VAC	1 A
Same Sky (Formerly CUI Devices) SJ1-3525NG-GR			3 Conductor Stereo TRS	3.5 mm	Mini Plug	Female	Solder	Phone Jack	5 Contacts	3 Conductors	Right Angle Through Hole	85 °C	-25 °C	Unshielded	0.142 in	PBT Polybutylene Terephthalate	0.551 in	Brass Copper Alloy Stainless Steel	Silver	Green		12 VAC	1 A	2 count
Same Sky (Formerly CUI Devices) SJ1-3534N		Single Switch	3 Conductor Stereo TRS	3.5 mm	Mini Plug	Female	Solder	Phone Jack	4 Contacts	3 Conductors	Right Angle Through Hole	85 °C	-25 °C	Unshielded	0.142 in
Same Sky (Formerly CUI Devices) SJ1-3524NG		Single Switch	3 Conductor Stereo TRS	3.5 mm	Mini Plug	Female	Solder	Phone Jack	4 Contacts	3 Conductors	Right Angle Through Hole	85 °C	-25 °C	Unshielded	0.142 in
Same Sky (Formerly CUI Devices) SJ1-3525N			3 Conductor Stereo TRS	3.5 mm	Mini Plug	Female	Solder	Phone Jack	5 Contacts	3 Conductors	Right Angle Through Hole			Unshielded	0.142 in	PBT Polybutylene Terephthalate	0.551 in		Tin	Black Silver	Brass	12 VAC	1 A	2 count
