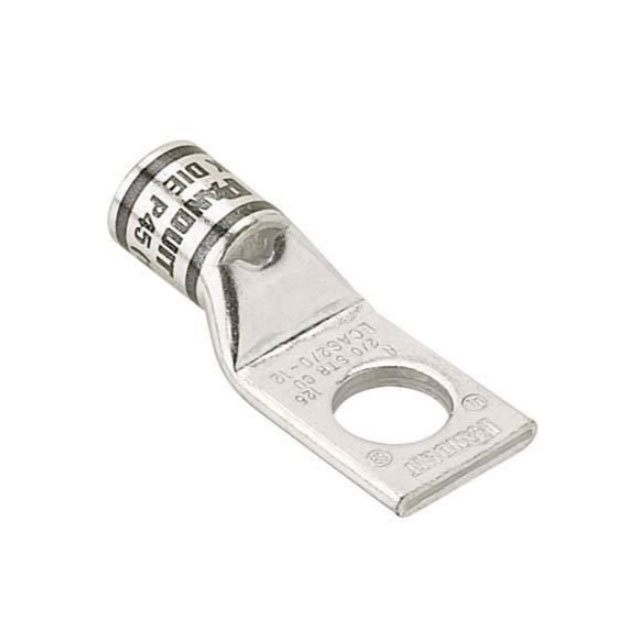

LCAS2/0-56-X
ObsoletePanduit Corp
CONN TERM RECT TONG 2/0AWG #5/16
LCAS2/0-56-X
ObsoletePanduit Corp
CONN TERM RECT TONG 2/0AWG #5/16
Description
General part information
LCAS2/0-56-X
Terminal Connector Rectangular Rectangular Tongue 2/0 AWG 5/16 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | LCAS2/0-56-X |
|---|---|
| Color | Black |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | 0.45 in |
| Diameter - Barrel OD | 0.58 in |
| Diameter - Ring ID | 0.34 in |
| Insulation | Non-Insulated |
| Length - Overall | 1.82 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.3125 in |
| Stud/Tab Size | 16 Stud, 5 Stud |
| Stud/Tab Size (Type) | Stud |
| Tab Thickness | 0.13 in |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Barrel, Crimb |
| Width - Outer Edges | 0.85 in |
| Wire Gauge | 2/0 AWG |
