Description
General part information
I3A08A-C01-EVK-S1

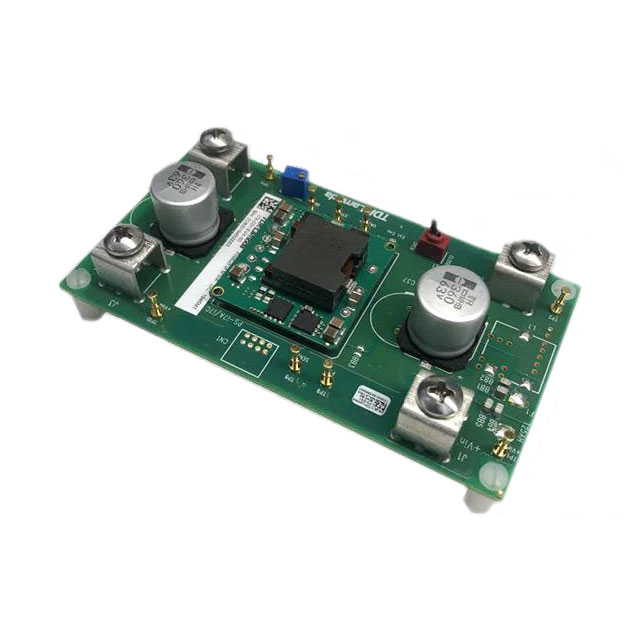

I3A08A-C01-EVK-S1 is a compact evaluation board with i3A4W008A033V001-R module.
Technical Specifications
Parameters and characteristics for this part
| Specification | I3A08A-C01-EVK-S1 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 8 A |
| Frequency - Switching | 450 kHz |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Power - Output | 100 W |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | I3A4W008A033V |
| Voltage - Input (Maximum) | 53 V |
| Voltage - Input (Minimum) | 9 V |
| Voltage - Output (Max) | 16.5 V |
| Voltage - Output (Min) | 3.3 V |
